HUD plates
Lay a tracked subject out like a field-guide plate, with moving technical widgets, insets, titles and connections.
A HUD plate frames your camera, video or image like a page from a field guide: lettered points on the subject, panels of moving graphs and zoomed insets, a title, and small technical widgets that move with the music. It is the HUD effect in the FX Rack, so it follows a face, hands, a body or the picture's outlines.
How do I lay my subject out as a HUD plate?
Open FX Rack in Performer mode, then under LOOKS choose FIELD GUIDE, LAB TERMINAL or LIVE READOUT. FIELD GUIDE lays the flower out as a field-guide plate, with technical widgets in molecular-biology words down the left and a dithered zoom of one point on the right. LAB TERMINAL boxes the face under a quantum-physics readout, with a new set of widgets cutting in on every beat. LIVE READOUT runs an amber plate along the bottom of the frame whose numbers are the music's own readings, names the track and the visualizer in turn, and swaps in a new row of widgets every 16 beats.
To build your own, add HUD from ADD AN EFFECT. TARGET picks what it follows; its HUD controls are arranged in focused groups:
- Open HUD, set it to ON, then press ROLL THE DICE until a composition fits your picture.
- Open TITLE & TOPIC, directly below it, to set the title, subtitle, title entrance and topic.
- Under WIDGETS, press + to add a widget, the arrows to reorder and × to remove. Choose placement under LAYOUT.
- Use WIDGET MOTION for SHOW, SWAP SETS and text animation.
- Use RIGHT PANELS to show all five, choose a subset, randomize the set, or rotate one panel at a time.
- Open INSETS for the zoomed panels and their effects. HUD STYLE holds color, glow and decorative animation; FOCUS holds target timing and close-up visibility.
Opening an effect or option group folds the previous one by default. Remember last selection is an optional preference for keeping several groups open.
What is on the plate?
Lettered squares mark points down the subject, and leader lines run from them to four panels on the right: the bass, mids and highs as moving line graphs, a zoomed inset, the subject's points as a slowly turning cloud, and the spectrum as a scatter of dots. Each panel has a live label above and coordinates below.
Columns of coordinates roll at the bottom left, an info card carries a barcode drawn from the spectrum, and a ruler down the right edge has a marker that rides the music. Words, insets and braille rows change on staggered beats, so the plate never changes all at once.
- The inset fills its panel without stretching and follows one point on the subject. A small canvas bracket marks the exact area it magnifies. When it finds a new target, the bracket tightens as the inset zooms in; its dashed leader stays attached to a bracket corner. The zoom reading follows the current magnification.
- INSETS adds more, each following its own point and taking the cloud's, the scatter's and the graph's panels in turn. ROLL THE DICE always deals one zoom inset, leaving the other panels available for their graphs.
- INSET EFFECT (and INSET 2, 3 and 4 EFFECT) runs each inset through ASCII, DITHER, THERMAL, INVERT, DUOTONE, POSTERIZE, GRADIENT MAP or RANDOM, with their own INSET settings (for example INSET THERMAL PALETTE).
- BRAILLE FIELD fills the space behind the subject with braille that spells phrases from the chosen TOPIC. BRAILLE OPACITY fades it.
For an animated model visualizer such as Model Pulse, choose FOLLOW: CONTOURS so the plate and inset connections follow detail in the rendered model. DIM PREVIEW dims annotation lines when music stops; zoomed pictures retain their HUD OPACITY, so dark surface detail stays visible. IN SILENCE defaults to FULL, keeping the annotations at full strength too while music is paused.
How do I show Audio Engine metrics in the BANDS panel?
Open HUD STYLE → BANDS GRAPH and choose ENGINE METRICS. The panel shows the same four metric strips as Audio Engine: LOUDNESS · RMS, FLUX · BASELINE, BEAT ENV, and CORRELATION · WIDTH. They follow the current audio source while the engine panel is open or closed, and appear in your rendered video.
The traces default to white. Raise GRAPH GAIN to make small changes easier to see, choose a shorter or longer GRAPH HISTORY, or use GRAPH COLOR to match your picture. FREQUENCY BANDS returns to the original bass, mid, and high graphs. With four zoom insets, an inset replaces the graph panel and its graph controls are hidden.
How do I choose or rotate the bracketed panels?
Open RIGHT PANELS and choose PANEL DISPLAY:
- ALL FIVE shows the column of BANDS, ZOOM, CLOUD, FFT, and the info card. Use the arrows in ENABLED PANELS to change their order. Removing a panel there switches PANEL DISPLAY to SELECTED, so only the panels still listed show. Each panel's settings button is there in every mode.
- SELECTED shows only ENABLED PANELS. Remove panels with ×, add them with +, or use the arrows to change their order.
- RANDOM chooses a distinct set from the enabled panels. Set PANEL COUNT, CHANGE EVERY, and RANDOM SEED for a different sequence.
- ROTATE ONE shows one enabled panel at a time, cycling through your chosen order. CHANGE EVERY sets how long each panel stays.
Each panel's settings button gives that panel its own inset effect, opacity and animation; until you change one, it follows the RIGHT PANELS values.
To animate the frame, choose BRACKET ANIMATION → GROW + FLICKER. Brackets grow outward from the center, then the panel content flickers on. Before a rotating or random set changes, the content flickers off and the brackets close toward the center; the next panel then opens. ANIMATION TIME sets how long it takes. CUT keeps the brackets at full size. Rotating and randomized panels use PANEL IN → FLICKER and PANEL OUT → INSTANT by default; choose FLICKER under PANEL OUT for a brief outgoing flicker instead.
OPEN + FLICKER opens each panel like a shutter instead: a thin line at its center widens to full width at full height, then the content flickers on the same way.
With multiple INSETS, the panel picker shows their actual ZOOM names. Selecting a panel does not change its inset effect. The layout and timing save with your FX look and carry into video exports.
How do I keep the lines and insets on one target longer?
Under FOCUS, set TARGET PACE:
- FAST moves the lines to new points as often as the music asks, often on every beat.
- CALM keeps each target for a while and glides the line to the next one.
- ON THE BEAT keeps each target for a couple of bars and moves on a beat.
With CALM and ON THE BEAT the widgets take turns, so one line moves at a time instead of all of them at once. Insets keep their crop and leader line on the same moving point. If a point disappears or the view changes too far to follow it, tracking selects a visible point immediately. TARGET TRANSITION makes each move glide instead of jump, at any pace.
HUD PRESENTATION → AUTO CLOSE-UP fades the whole plate down to CLOSE-UP OPACITY as the subject fills the frame, and brings it back as the camera pulls away. FULL keeps the plate as it is in every shot.
For a hold of your own length, keep FAST, raise TARGET HOLD and choose TARGET HOLD TIMING → SECONDS or BEATS. Each widget then stays on its point at least that long. BEATS waits while the music is paused. These controls save with your look and can be played from MIDI, OSC or the music.
How do I roll a new plate and keep the parts I like?
ROLL THE DICE (the dice button at the top of HUD, or a MIDI pad or OSC message you learn to it) deals a new composed set of widgets, layout, words, accent, glitch, insets and sometimes connections, often as FIELD LINES, on every press. Anything you like saves as a look.
Automatic deals keep each widget unique within the composition, including when SWAP SETS changes it later. Locked widgets keep their slots while the other slots choose around them. About a third of rolls also deal one of GLYPH ARRAY, NAMEPLATE, ECLIPSE AXIS, HORIZON, WIRE SOLID or EXPLODED CORE, and a widget with a second drawing style, such as GLOBE or LABEL CARD, gets it half the time. REMIX picks a drawing style for the widgets it deals as well.
- To keep one widget through a roll, press the padlock beside it in WIDGETS. It stays in its place while the rest are dealt around it.
- KEEP ON ROLL, under the roll buttons, holds whole parts of the HUD through every roll and REMIX. Press any of its chips: LAYOUT keeps the placement and the HUD ADVANCED fit, TITLE & TOPIC keeps the topic, WIDGETS keeps the whole set and its motion, CONNECTORS keeps the connection type and line style, RIGHT PANELS keeps the insets and their effects, and COLORS keeps the accent, glitch and braille field. Press a chip again to let the roll change that part. LAYOUT does not freeze an orbiting layout.
- UNDO ROLL (or a MIDI pad or OSC message learned to it) brings back what you had before the last roll.
REMIX (beside ROLL THE DICE, or a MIDI pad or OSC message you learn to it) makes a new take on the look you are on instead of a new look. The topic, accent, placement, title, frame and connections stay.
Each widget becomes another of its own kind: a micrographic diagram for a micrographic diagram, a dial for a dial, a text block for a block, a strip for a strip. It keeps its line to the subject and gets a new TEXT STYLE. TYPE LOCKUP and locked widgets stay in place. When the look uses TYPEFACE, TYPE CONTRAST or MODULE GRID, a remix also deals a new face, contrast and grid. Press it until a version fits, save it as a look, or press UNDO ROLL to go back one step.
How do I set the title and numbers?
Use TITLE & TOPIC for words and title entrances, and HUD STYLE for number flashes and the plate intro. TITLE OPACITY fades the title plate, header and marquee on their own, and RIGHT PANELS › PANEL OPACITY fades the bracketed panels and insets.
- TITLE and SUBTITLE set the plate's words. Leave TITLE empty for a random title from TOPIC, dealt every eight beats; typing a title overrides that automatic name. An empty subtitle reads HUD ID.
- TITLE FROM puts the name of the audio playing (AUDIO) or of the visualizer (VISUALIZER) on the plate instead, or ROTATEs through the topic title, the audio and the visualizer every few bars. A typed TITLE replaces the topic title in that rotation.
- TITLE IN brings the title and subtitle in whenever they change: SCRAMBLE (random characters settling into the name), TYPE, FLASH (a fluorescent strike), FADE, GLITCH (red and cyan ghosts that settle), SCAN (a bright line wiping the name in), FRAGMENT DECODE (scattered character fragments assembling into complete rows), or MIXED, which picks a different entrance each time.
- HEADER LAYOUT selects the familiar CLASSIC PLATE or the compact two-column TECHNICAL HEADER. The technical header shares the title entrance, topic and accent.
- TRAVELING MARQUEE independently adds a scrolling strip below either header. Leave MARQUEE TEXT empty to follow the title and topic, or enter your own text. MARQUEE SPEED and MARQUEE DIRECTION control its travel; speed zero holds it still.
- NUMBER FLASH makes the number columns flash in every four beats, at FLASH SPEED. It works by ROWS, COLUMNS, LINES (one number at a time), DIAGONAL, RANDOM, STACK (rows dropping in and piling up from the bottom) or FLUORESCENT (each number flickering on like a tube).
- INTRO strikes each element on like a fluorescent tube when HUD appears and after every roll: SEQUENTIAL in reading order, RANDOM, or OFF.
Which widgets can I add?

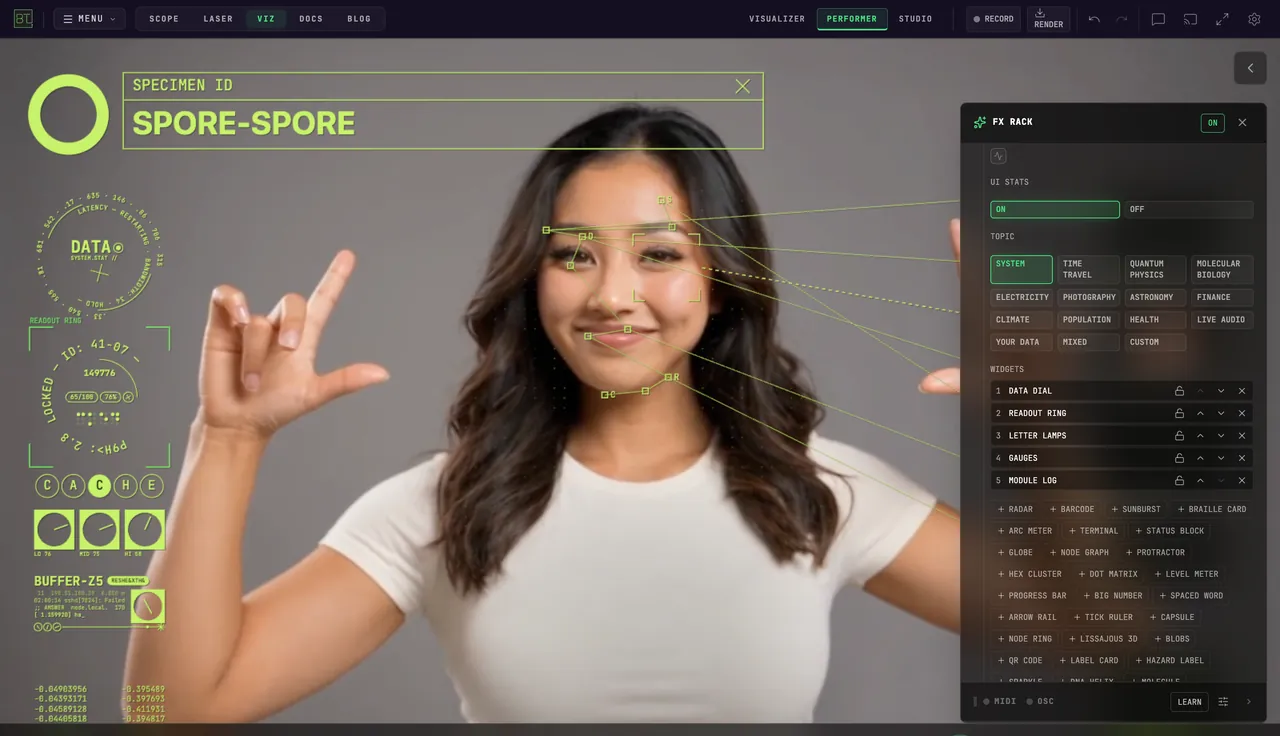

WIDGETS → UI STATS adds small technical widgets, all of them moving. WIDGETS lists which ones show and in what order: browse the available widgets alphabetically in Thumbnails (the default) or List view, then press + on a widget to add it, the arrows to move it and × to remove it. The view choice is remembered in this browser. Selected widgets keep their drawing order. Point at a selected widget in the list and it is outlined on the stage with its name, so you can tell which is which.
To find a widget quickly, type part of its name in Search widgets..., or press a family button (ALL, DIALS & 3D, STRIPS or PANELS & CHARTS) to browse one family. While a filter is on, the number of matches shows under the buttons; press × in the search field (or Escape) to clear it. Filtering never changes which widgets are selected or their order.
The widgets include:
- Dials and rings: a DATA DIAL reading SYSTEM.STAT with numbers ticking around its rim, a READOUT RING with braille spelling its status, GAUGES whose needles follow the bass, mids and highs, a RADAR, a PROTRACTOR and a GEAR.
- Text and data: LETTER LAMPS lighting one per beat, a MODULE LOG typing in ping replies and traceroute hops, a TERMINAL, a BIG NUMBER, a LEVEL METER, a PROGRESS BAR and a CAPSULE.
- Shapes in motion: a GLOBE, a NODE GRAPH whose pulses run out on the beat, a HEX CLUSTER, a DOT MATRIX whose dots breathe and scroll a hidden code between beats, BLOBS, SPARKLE, a LISSAJOUS 3D (Scope's 3D curves turning in space, a beam tracing them), a DNA HELIX and a MOLECULE turning in 3D.
- Blueprint marks: DIMENSIONS and a SECTION MARK.
- Infographics that move with the music: DIVERGING BARS, RING STATS, a LINE CHART, STOCK CANDLES, AREA WAVES, BIG STATS, a TIMELINE, RADIAL BARS, DONUTS, a BAR CHART, a PICTOGRAM of people, a dotted WORLD MAP with pings and links, and a RADAR CHART.
- Labels: a HAZARD LABEL, a BIOHAZARD LABEL, a RADIOACTIVE LABEL, a LABEL CARD and a QR CODE. Both QR codes open the visualizer used in the picture, such as Model Pulse, and keep that destination as the words change. In Studio they use the first visible visualizer layer; a composition without a visualizer opens the visualizer picker.
QR CODE and LABEL CARD default to QR DISPLAY → ROTATE, alternating with RADAR every eight seconds, starting with the radar. Choose REPLACEMENT WIDGET and SECONDS PER VIEW in the widget settings. A replacement already used elsewhere in the widget set is skipped for another available choice. ALWAYS keeps the code visible; OFF · REPLACEMENT ONLY keeps its replacement visible. The slot keeps its position and size. QR modules remain white over transparent cells.
Open the widget's settings and choose QR STYLE → BLACK · WHITE PANEL for a light background; WHITE · TRANSPARENT keeps the picture visible between the modules.
STOCK CANDLES draws a stock-style chart with candle bodies, high/low wicks and volume bars. Each beat forms a new candle at normal UI SPEED; REACT controls how the music moves the newest candle. Filled candles rise and outlined candles fall. This is a music-reactive graphic, not live market prices. Add it through WIDGETS, or choose STOCK CANDLES under PANELS & CHARTS when adding a UI STATS layer in Studio.
BIOHAZARD LABEL adds the three-part biohazard symbol and UNIVERSAL PRECAUTIONS caption. RADIOACTIVE LABEL uses the radiation trefoil and IONIZING RADIATION caption. Each symbol pulses with the beat while the warning stripes crawl at UI SPEED; REACT controls the pulse. Both use your line and accent colors.
Rings, arcs and lines draw on as a widget appears. Every widget draws in the HUD's line color.
The BRAILLE CARD blinks its raised dots independently, with staggered random timing. Its decoded caption stays readable. Open the card's options and use BLINK SPEED to slow or speed the blinking; zero holds the dots still.
How do I configure one widget?
Press the sliders icon beside a selected widget or on its browser card. The card flips over to show that widget's options; DONE or Escape returns to the front. Options apply immediately and save with your FX look.
- CHANGE IN and CHANGE OUT follow the HUD defaults. Override either with FLICKER or INSTANT for that widget.
- OPACITY fades that widget. CUSTOM INK exposes its own INK color.
- Widgets with words offer TEXT SOURCE. Choose CUSTOM WORDS to enter comma-separated WORDS, or FOLLOW HUD to use the plate's topic.
- Relevant widgets offer motion speed and a count such as chart bars, rays or surface points. A speed of 0 holds that widget's idle movement. AUDIO RESPONSE, under AUDIO INPUT, sets how strongly a widget follows the music.
- DOT MATRIX adds DOT SHAPE and HIDDEN CODE. Warning labels add HEADLINE and CAPTION.
- RESET WIDGET resets only this widget's options. It keeps the selected widgets and their order.
Every widget follows the selected TOPIC by default, including the fixed info card. TEXT SOURCE → FOLLOW HUD keeps that link; Studio uses FOLLOW LAYER. Select a specific topic, RANDOM / MIXED or CUSTOM WORDS only for an intentional exception. The six new looks start with every widget following their topic. An empty main YOUR WORDS list uses SYSTEM. An empty widget CUSTOM WORDS override keeps following its parent.
These topic groups include matching headings, field names, status words, log lines, and readout units:
| Topic | Words and readouts |
|---|---|
| MARINE RESEARCH | Sonar, dive logs, bathymetry, salinity, oxygen, and currents |
| DEEP SEA BIOLOGY | Jellyfish bells, mesoglea, tentacles, pelagic blooms, marine snow, and bioluminescence |
| ORBITAL OPERATIONS | Docking, flight telemetry, attitude, power, and ground links |
| ROBOTICS & VISION | Pose graphs, depth maps, feature tracks, joints, and grip force |
| SIGNAL INTELLIGENCE | RF surveys, carriers, bursts, array bearings, and signal levels |
| GEOLOGY & MATERIALS | Core samples, strata, grains, porosity, stress, and hardness |
| TEMPORAL SYSTEMS | Clock drift, phase lock, frame synchronization, jitter, and event timing |
Changing the shared topic updates every following widget while preserving intentional overrides. Turning EXTRA TEXT BLOCK off hides its heading and footer without losing that widget's selected TEXT SOURCE or custom WORDS.
How do I keep the whole model visible during a close-up?
With Model Pulse selected, add 3D MODEL OVERVIEW under WIDGETS. It shows the complete animated model independently of the main camera, so an extreme close-up can retain an overview of the subject.
Open its sliders card for MODEL VIEW → FRONT, LEFT, RIGHT, BACK or 360 ROTATION. Rotation adds ROTATION SPEED. Toggle SCANNER, CAMERA AREA and HUD GUIDES independently; CAMERA AREA marks the main view on the overview. SURFACE POINTS sets how detailed it is.
Choose this widget explicitly: automatic rolls and random widget deals keep using the other widgets. Outside Model Pulse, its card explains which visualizer to select. The model overview is not offered as a standalone Studio UI STATS layer. It is included in Model Pulse video and print exports.
Which widgets combine diagrams and technical labels?
For fine geometric diagrams mixed with technical labels, add ORBIT LOOM, FLUX GATE, SIGNAL PATCH, or SPECTRUM PATCH by name in WIDGETS:
- ORBIT LOOM weaves moving orbit lines into a precessing globe. Bass shears the weave, mids tilt it, and highs lengthen its traveling accents.
- FLUX GATE bends two crossing fields inside a square. Bass twists the center while packets travel along the field lines.
- SIGNAL PATCH pairs a large band readout with three linked, animated signal cells and a compact scanning band strip. Its headline and status follow your chosen topic.
- SPECTRUM PATCH makes the playing audio’s spectrum the main graphic. Choose SPECTRUM STYLE → BARS, LINE, or MIRRORED, change its BAND LANES and SPREAD, and keep a scanning cursor and optional band readouts around the graph. Without a spectrum input, it shows NO SPECTRUM.
Three more forms combine the same topic, color, and audio controls:
- VECTOR CHAMBER threads bending signal paths through a wireframe box that turns through a full 3D rotation with a gentle tilt. Choose its trace count and use SPREAD to open their depth.
- PHASE BLOOM arranges looping petals around a small core. Bass opens the petals, mids twist them, and highs change their moving accents. Choose its petal count and SPREAD.
- PACKET ROUTER sends moving packets through a bundle of crossing routes. Choose the route count and use SPREAD to separate the routes at their center.
Open the widget's Configure button to change its orbit, field-line, band-lane, trace, petal, or route count; SPREAD changes the geometry. Turn GUIDES or READOUTS off for a simpler graphic. Motion speed and AUDIO RESPONSE work independently, so the diagram can hold still while the music continues to deform it. These seven are explicit choices; random deals and SWAP SETS keep using their usual pool. They are also available as UI STATS layers in Studio.
TEXT SOURCE → FOLLOW HUD uses the shared topic. Choose another topic or CUSTOM WORDS to give a widget its own vocabulary. Widgets follow the shared accent unless you enable CUSTOM ACCENT; CUSTOM INK changes their base line and text color independently.
The ROLL THE DICE button shows SEED beside its label after a roll. The number identifies the random sequence used for that roll; UNDO ROLL restores the previous seed along with the settings it changed. Saved looks retain the seed. Placement locks and locked widgets remain part of the starting composition.
Which looks combine the new widgets?
Open FX RACK → LOOKS and try the HUD looks: FIELD GUIDE, LAB TERMINAL, LIVE READOUT, ORBITAL SURVEY, ABYSSAL TRANSECT, FIELD JOURNAL, GLYPH LAB and FLIGHT DECK, plus DEEP SEA STUDY over Model Pulse. Each pairs a topic and an accent color with its own set of widgets, and a few of the widgets draw lines to the subject. ORBITAL SURVEY, ABYSSAL TRANSECT and FIELD JOURNAL swap in a new set every sixteen beats. See them all.
Each look keeps a picture you already chose. With nothing chosen, it offers the flower or Trina example. Open Configure on any widget to change its audio, timing, text, color or lines.
Which new micrographics can I combine?
These original diagrams use the playing audio’s spectrum or bands by default; choose WAVEFORM to use its signed waveform. They react to audio by default and continue their own timed motion in silence. Use their count, speed, spread, guides, and readouts controls alongside the shared audio, timing, topic, text, and accent options.
| Widget | Motion and audio response |
|---|---|
| GYRO PRISM | Nested tetrahedral shells turn inside a gimbal. Bass changes their twist; mids change the tilt. |
| LATTICE RELAY | An isometric cell assembly rises and falls by input lane while a timed relay moves across the cells. |
| VECTOR SAIL | A triangular wire membrane deforms with the selected signal while a scan travels across its mesh. |
| OCTA SCAN | A turning octahedron carries stacked slices and a traveling cross section; audio twists the slice layers. |
| PENDULUM ARRAY | A bank of timed arms swings at offset rates. The input changes each swing, and a line joins their ends. |
| SHUTTER MATRIX | Tile shutters flip in a traveling sequence. Each input lane advances its own column of blades. |
| WAVE ATLAS | A projected surface carries the source waveform or FFT lanes through a stack of depth rows. |
| MAGNET FIELD | Paired contour loops bend between rotating poles; packets travel along their own field paths. |
| INTERFERENCE LENS | Crossing chord fans form a moving optical envelope. Audio changes the angles, and packets cross the lens. |
| APERTURE GATE | Individual iris blades pivot around an opening whose shape changes with the selected input. |
| PHASE LADDER | Offset gates and connected rails form a ladder. Packets travel through the rungs as the gates shift. |
| TEMPORAL STACK | Planes travel through depth and fade at the ends. Audio shears individual planes while scan bars cross them. |
ORBITAL SURVEY combines the turning GYRO PRISM and OCTA SCAN with astronomy words and a cyan accent. Recall the look, then open either widget’s Configure card to change its input or motion.
Which tags, plates and instruments can I add?
Eight more widgets add labeled glyph sheets, sequencers and instruments. Add them in WIDGETS; each has SPREAD, GUIDES and READOUTS like the other micrographics.
| Widget | What it shows |
|---|---|
| GLYPH ARRAY | A sheet of small glyphs (a spring, a pulse train, a coil, a decay curve, a tunnel and more), each tagged with a code name and moved by its own part of the spectrum. GLYPHS sets 4 to 16. |
| NAMEPLATE | Stacked tag plates cut at 45°, each with a word, a code and a fill that moves with its band. PLATE STYLE picks TAB, STEP, SPLIT, BANNER, KNOCKOUT, CHEVRON or RAIL, or MIXED for a different plate on each row. |
| ECLIPSE AXIS | Turning axes ending in moon-phase discs that fill with their bands, with an index number and a file name kept clear of the axes. |
| STEP RING | The current bar as a ring of numbered steps. Each step stands out by the drum hits and loudness there, and the inner ring marks the song's section. |
| GATE LANES | One lane per drum and band. Every hit stamps a gate that scrolls toward the playhead, and hits that land together are linked. |
| HORIZON | An attitude indicator with a pitch ladder, a roll scale and a heading tape. Bass tips the nose, and the mids roll the horizon. |
| WIRE SOLID | One turning wireframe whose surface ripples with the spectrum. SHAPE picks a torus, twin funnel, step pyramid, lens or hourglass. |
| EXPLODED CORE | A wire sphere split into parts that pull apart on the bass inside two turning gimbal rings, with tagged callout pins. PARTS sets 4 to 8; SPREAD sets how far they open. |
STEP RING and GATE LANES read the playing track's beats and hits; without a track they follow the live beat.
GLYPH LAB and FLIGHT DECK in FX RACK → LOOKS start you with these widgets: a glyph sheet, tag plates, gate lanes and a wing gauge beside Trina, or a horizon, a compass rose, a twin funnel and a step ring beside the flower.
Some widgets you already use have a second drawing style in Configure: GAUGES → KNOB BANK, BARCODE → SPECTRUM KEYS, GLOBE → HEX DOTS, DOTTED EARTH or SCRIBBLE (with rings that open on the beat), VECTOR COMPASS → ROSE, RING STATS → DOT RINGS, and LABEL CARD → SHIPPING, SPEC SHEET or BIG NUMBER. LEVEL METER → WING GAUGE draws two lit crescents. DOT MATRIX → DOT SHAPE adds PLUS MARKS and CROSS MARKS.
How do I change a widget's audio, timing, and text?
Open Configure on any widget, then expand AUDIO INPUT or TIME & TEXT. These controls are available for every widget, including the original dials, charts, labels, and strips.
- REACTION SOURCE chooses the widget's native response, a band, volume, beat, spectral flux, spectral centroid, spectrum, or waveform. INPUT POSITION picks a position within a spectrum or waveform. AUDIO RESPONSE sets how strongly the widget follows that input; AUDIO TO MOTION also lets it move the animation's clock, and then AUDIO RESPONSE appears on every widget to scale that motion.
- SIGNAL OVERLAY adds a spectrum or signed waveform strip in its own space below the graphic. It stays flat when that input is unavailable.
- TIME MODE offers continuous motion, LOOP, PING PONG, and ONCE. Set the cycle's duration and phase; TIME EFFECT can draw the graphic on or move a scan line across it.
- CODE TAG adds a code name such as LATENCY.09 as a header, ALONG SIDE or AROUND RING. FRAME draws BRACKETS, a WINDOW with title-bar marks, or a 45° CHAMFER around the widget.
- EXTRA TEXT BLOCK adds a topic heading, footer, or both, even to a diagram with no built-in words. Choose TEXT SOURCE for its topic or custom words.
- TEXT STYLE sets the entrance and exit together: GLIDE, TYPEWRITER, SIGNAL, RISE, TICKER, PRINT, CIPHER, BLINK, TELETYPE or BURST. TEXT IN and TEXT OUT set either one on its own, which shows the style as CUSTOM. Set their cycle, transition duration, and stagger to alternate readable holds with typing, scrambling, fading, or sliding.
- When every widget sets its own text entrance, the HUD's TEXT ENTRANCE control is hidden, because it would change nothing.
An intrinsic spectrum graph still shows the spectrum. The reaction source controls its choreography; it does not turn a different measurement into a spectrum. Widgets inherit the shared accent color until you enable CUSTOM ACCENT. The same presentation controls are available for UI STATS layers in Studio.
In this example, waveform and spectrum widgets share climate words. Try a different REACTION SOURCE on one widget while keeping the others unchanged.
How do I connect a widget to the graphic beneath it?
Open the widget's Configure button and set SUBJECT LINK → ON. This adds a leader to a tracked point even in LEFT COLUMN, TOP ROW, or BOTTOM ROW placement. OFF removes that widget's subject leader while retaining any connections between widgets. FOLLOW PLACEMENT keeps the usual placement and CONNECT behavior, including automatic leaders in ORBIT and CORNERS.
Expand SUBJECT CONNECTION to give this widget its own SUBJECT LINE STYLE, SUBJECT LINE FLOW, weight, opacity, endpoint, endpoint opacity (SUBJECT TIP OPACITY), and anchor. SUBJECT LINE COLOR → FOLLOW ACCENT makes the line adopt the shared accent or this widget’s custom accent. FOLLOW LINE STYLE adopts the HUD's LINE STYLE section. FIELD exposes its strand count and spread. You can mix a few connected widgets with unconnected ones by setting the others' SUBJECT LINK to OFF.
The leader follows the same tracked subject as the right-side panels and uses the shared callout style, endpoint, target hold, and smoothing controls. It needs a detected subject; it does not point to an invented position when no subject is available. The widget's numbers and diagrams remain audio-driven graphics rather than measurements of the linked point.
Here PENDULUM ARRAY and MODULE LOG connect to the face while the other two widgets stay on their own.
Which widgets combine instrument panels?
Eight compositions pair moving diagrams with compact readouts and original label text:
| Widget | What it draws |
|---|---|
| FIELD COIL | Curved field loops with a band meter rail |
| ORBIT SEAL | A rotating wire globe with orbital marks and a serial strip |
| VECTOR COMPASS | A bearing dial with an audio-responsive needle and tilt marks |
| PHASE WHEEL | A sixteen-sector beat wheel with a central phase readout |
| SIGNAL MANIFEST | An inspection card combining status, band ticks and a barcode |
| BAND LEDGER | Indexed horizontal bands with linked annotations |
| RELAY CIRCUIT | A circuit of nodes with traveling signal markers |
| SEQUENCE TRACE | A nested signal itinerary with a moving cursor and band graph |
Use TOPIC or YOUR WORDS for the changing text, REACT for audio movement, and UI SPEED for idle travel. The diagrams remain visible in silence and use your line and accent colors. They are decorative music graphics; the compass and manifest are not navigation or physical measurements. You can also add each composition as its own UI STATS layer in Studio.
Which widgets draw circuits?
Five widgets draw electrical diagrams that move with the music:
| Widget | What it draws |
|---|---|
| SCHEMATIC | A circuit with a source, two resistors, a coil, a capacitor and ground. Current runs around the loop, and nodes A and B show live voltages that glow on the beat |
| TANK & TURBINE | A tank that fills with the bass, piped to a turbine that turns and kicks forward on every beat, with level and speed readings |
| SIGNAL CHAIN | Four stages in a row. The lit stage steps on the beat while a packet runs the chain, and the signal leaves it as a trace that grows with the music |
| CELL COLUMNS | Columns of memory cells, each as tall as its part of the spectrum, with a dotted trace crossing them |
| FIELD MAP | Three charges drifting in a box, with the contour lines of their field around them. The bass, mids and highs charge them |
Use TOPIC or YOUR WORDS for their labels, REACT for how far the music moves them, and UI SPEED for their idle motion. They stay visible in silence and use your line and accent colors. The voltages, levels and charges are music graphics, not measurements. You can also add each one as its own UI STATS layer in Studio.
Which widgets react to HIT?
Eight instrument widgets move with the music and also answer HIT, a trigger you fire from a MIDI pad, an OSC message or a modulation route:
| Widget | With the music | On HIT |
|---|---|---|
| PLATTER | A turntable whose grooves ripple with the bass (outer) to the treble (inner); the strobe dots flash on the beat and the tonearm walks inward over 64 beats | The platter jolts backward and settles, like a scratch |
| SEGMENT DECK | A hi-fi display with faint unlit segments: a word, a counter, a segmented spectrum whose caps hold on the beat, and BEAT, BASS and SIGNAL lamps | The word changes to >>HIT<< and the HIT and REC lamps light |
| GRAVITY WELL | A wire funnel that deepens with the bass while rings flow into it; a small mass spirals in over each bar and is captured on the downbeat | A second mass drops in, highlighted in the accent color |
| ELEMENT CARD | A periodic-table tile and its atom: electrons orbit, the bass lifts the outer electron and it gives off a wavy photon after the beat; the element changes every 16 beats | The outer electron leaves and the symbol takes a plus |
| HARMONIC STRING | A string between two clamps whose shape mixes six harmonics, one per part of the spectrum, with its nodes, half wavelength and amplitude marked | The string is plucked |
| POCKET LCD | A pixel screen with signal bars, a counter, bar and beat numbers, a menu whose cursor moves on the beat, and a pixel spectrum | REC blinks; a full-strength hit flashes the screen inverted |
| SPECTRAL TOPOLOGY | A 3D field of stems whose front row is the live spectrum, with a wave rolling back from it | A ring of raised stems spreads across the field |
| LIGHT CONE | A spacetime diagram: every beat is a point that falls through the observer on that beat, with smaller points for eighth notes; the cones open as the music gets louder | A ring of light opens along both cones |
To fire HIT in the FX Rack, open HUD STYLE, set WARNING ACCENT → ROUTED TRIGGER, then assign WARNING TRIGGER to a MIDI pad, an OSC address or a modulation source. The same trigger also flashes the warning labels. WARNING STRENGTH scales it. In Studio, the HIT slider appears for these widgets and the warning labels; assign it the same way as other layer sliders. REACT scales the music response and UI SPEED the idle motion (the platter's turn and the counters); at 0 the idle motion holds. The tilt reading, counters and atoms are music graphics rather than measurements, although the element cards show each element's real atomic number, weight and electron shells.
Which widgets follow the song?
Eight score widgets read the whole track, so they can show what is coming as well as what has played: SCORE ROLL, NOTE HIGHWAY, NOTE KEYS, BAR CLOCK, BAND CONSTELLATION, LOUDNESS STRIP, SIGNAL TRIO and STEM RIBBONS. Add them by name in WIDGETS. ROLL THE DICE, SWAP SETS and random deals keep using the other widgets, and a score widget you lock with its padlock stays through them.
When you add the first one, the track is read once, which takes a few seconds for a full song. Until then each widget names what it needs.
| Widget | What it shows | On HIT |
|---|---|---|
| SCORE ROLL | A piano roll of the notes, one bar behind the playhead and three ahead. A note found in the audio is fainter the less certain it is | A flag drops on the playhead |
| NOTE HIGHWAY | Notes travel down twelve lanes, one per note name, and burst as they start. SCORE and COMBO count the drum hits that land on the beat grid; the footer shows the section and tempo | The sounding lanes ring in the accent color |
| NOTE KEYS | The notes the song uses most, each lit while it sounds, under the key and the current chord | The lit keys are outlined in the accent color |
| BAR CLOCK | One turn per bar, with the bar number, tempo and section (INTRO, VERSE, BUILD, DROP, BREAK or OUTRO). Kick, snare and hi-hat hits print where they land, and the last bar's pattern waits faintly ahead, so a repeating groove lines up and a fill stands out | The bar so far turns the accent color inside a shell |
| BAND CONSTELLATION | The nine frequency bands as linked bodies, low bass at the base. Each grows with its band, an arrow shows it rising or falling, and a bass hit bursts from the bottom | A shell opens around each body |
| LOUDNESS STRIP | The whole track's waveform with its short-term loudness drawn over it, the played part solid, and its short-term (S), momentary (M) and integrated (I) loudness in LUFS | A flag drops on the playhead |
| SIGNAL TRIO | A waveform scope, the nine bands with a mark holding each band's recent peak, and a stereo vectorscope | — |
| STEM RIBBONS | One ribbon per uploaded stem, six seconds behind and two ahead. Without stems, five groups of bands | — |
Where do the score widgets get their notes?
The notes come from the first of these you have: a MIDI file loaded for the track, the stems you uploaded, or the track itself. A MIDI file gives the exact notes and also sets the tempo and bar lines. Notes found in audio are an estimate, most reliable on separate stems and on clear melodic parts. A MIDI file's drum channel and a stem named for drums or percussion give no notes.
To load one, click the activity button (Assign modulation) under any slider, or open the Audio Analysis Engine's Modulation tab, then press LOAD MIDI beside UPLOAD STEM. The row shows the file's note count and tempo. ALIGNMENT (s) moves the notes against the track; a positive value starts them later. REPLACE MIDI swaps the file and REMOVE clears it.
BeamTracer reads Standard MIDI Files (format 0 or 1, timed in beats) up to 8 MB; a file it cannot read shows why under the button, and any file already loaded stays. Notes played on a connected MIDI controller also appear in the note widgets as you play them. They show while you perform but are not drawn into a rendered video.
With a microphone or other live input instead of a track, the widgets show what has played so far and nothing ahead. They keep up to the last two minutes. Live input gives no notes of its own, so the note widgets show only what a MIDI controller plays.
RENDER VIDEO draws each frame from the moment of the track it shows, so a rendered video matches playback. If the track is still being read when you render, the render waits for it first.
How do I swap the widgets on the beat?
SWAP SETS trades the widgets for a different set every 2, 4, 8 or 16 beats, every few seconds, on HIT or on a bass hit. OFF keeps one set. The widgets change in random order. CHANGE sets how each changing widget leaves and arrives, for set swaps, single slots, rolls and QR rotation: FLICKER IN (the old widget goes at once and the new one flickers in), FLICKER (flickers out, then in), FLICKER OUT (flickers out, then cuts in) or CUT. Each widget's CHANGE in its settings follows HUD's until you pick one.
- SWAP FROM picks where each new set comes from: ANY WIDGET, the SAME SHAPE (the layout holds still), the SAME FAMILY, or SHUFFLE MINE (your own widgets in a new order).
- LIBRARY TOUR visits every self-contained widget before repeating, including the diagram widgets. Beat intervals follow the soundtrack's BPM grid when one is available; without a grid they follow detected beats. Locked widgets stay put, and rows use short widgets. QR, score, and model-specific widgets stay explicit choices.
- SKIP FROM TOUR leaves selected widgets out of automatic tour sets. Your initial set and locked widgets remain authored. Leave at least as many eligible widgets as unlocked slots; otherwise the authored set stays.
- A widget you lock with its padlock in WIDGETS stays in its place, lit, through every swap.
PER SLOT swaps single slots at the SWAP SETS pace instead of the whole set. SLOT SHARE sets how many slots swap, and SWAP FROM picks their widgets from the SAME SHAPE, the SAME FAMILY (dials, text blocks or strips) or ANY WIDGET; SHUFFLE MINE and LIBRARY TOUR apply to whole sets, so they hide while PER SLOT is on. ROLL THE DICE sometimes turns PER SLOT on too. For a new set of widgets each time, use ROLL THE DICE.
How do I bring widgets in one at a time?
SHOW keeps every widget up (ALWAYS) or brings one in at a time on EACH BEAT, a BASS HIT, the HUD's HIT from a MIDI pad or OSC, or MIDI PADS. With MIDI PADS, each widget waits for its own pad: learn UI STAT 1 to UI STAT 8 under FX · HUD in MIDI Learn. A widget holds for HOLD seconds, then fades.
- TEXT ENTRANCE sets how words arrive: SCRAMBLE (random characters landing on the word), TYPE or CUT. Turn on RANDOM PER WIDGET to give each widget its own entrance from the three.
- FLICKER moves more of the words onto fast changes, some every frame and some every beat.
- GLITCH breaks a widget up for a frame or two as it comes in and on every fourth beat: INVERT, CHANNEL SPLIT or MIXED.
- REACT sets how far the needles, rings and rays follow the music, and UI SPEED how fast they turn and tick.
Where do the widgets sit?
UI PLACEMENT puts the widgets in the LEFT COLUMN, a TOP ROW or a BOTTOM ROW, spaced evenly and sized so none overlap. LEFT + RIGHT splits them into a column on each side of the subject: the first half on the left, the rest on the right, inside the panels when the HUD plate shows.
BESIDE SUBJECT stacks them against the subject's roomier side, starting level with its upper third, so a TYPE LOCKUP sits next to a face like a caption; it suits two or three widgets. ORBIT sets them around the subject and CORNERS at the corners of its box. While a scene's Studio layout is running, STUDIO LAYOUT also appears: it puts them where they sit in that layout; turn on STUDIO LAYOUT UNDER THE RACK so the layout's UI STATS widgets get HUD's leader lines to the subject.
Widgets never cover the title, the insets and panels on the right, the ruler or the number columns. That holds in every placement, after HUD ADVANCED moves or scales them, and for a widget you drag: one dropped on them moves to the nearest free spot. Widgets also stay off the subject and each other while there is room; around a subject that fills the picture, ORBIT and CORNERS keep them full size and let them sit over its edges. CALLOUTS controls their leaders to the subject, while CONNECTIONS adds links between widgets.
HUD ADVANCED fine-tunes the set with UI X, UI Y and UI SCALE. However large or far you move the set, it stays inside the picture. The LEFT COLUMN, TOP ROW and BOTTOM ROW always stay in one line. If a larger UI SCALE or a move would put them on the title or the number columns, the whole line slides along and gets only as much smaller as it needs. Only widgets you drag yourself leave the line.
To place widgets one by one:
- Set DRAG WIDGETS to ON. Each widget shows a dashed outline.
- Drag a widget on the picture to move it, or drag its bottom-right corner to make it bigger or smaller.
- Turn DRAG WIDGETS off when you are done. The widgets stay where you put them and save with your look.
RESET POSITIONS puts them all back in the automatic layout.
How do I arrange the callout lines around my subject?
Open HUD → CALLOUTS to shape the leaders from the subject to the plate’s widgets and right-side panels.
- LEADER ROUTING draws each leader the CLASSIC way or from the NEAREST EDGE of its widget or panel.
- ARRANGEMENT chooses FREE, ORDERED, GOLDEN ANGLE, RADIAL FAN or BRANCHING. Try ORDERED for a quieter top-to-bottom grouping, GOLDEN ANGLE for a spiral-like spread, RADIAL FAN for spokes, or BRANCHING for repeated proportions. These arrangements choose among the tracked points; they do not measure a subject’s proportions.
- TARGET SPACING spreads the selected targets apart in every arrangement except FREE.
- CALLOUT ANCHOR snaps the widget end of each leader to a corner or edge center. AUTO chooses the nearest one; TOP, MIDDLE and BOTTOM use the widget’s left edge. TOP + BOTTOM joins its two left corners to one subject point, forming a triangle. An inset’s crop guide stays attached to its capture bracket.
- CALLOUT LINE chooses the line style. FOLLOW LINE STYLE draws the leaders in the HUD's LINE STYLE section (style, flow, field colors, opacity and weight), which appears while a line follows it. CALLOUT OPACITY and CALLOUT WEIGHT fine-tune the leaders.
- END TIP marks the tracked end with CIRCLE, SQUARE, +, TRIANGLE, DIAMOND or NONE. END TIP SIZE changes its size and END TIP OPACITY fades the tip without fading the line.
Use FOCUS → TARGET PACE (CALM or ON THE BEAT) to keep those subject points longer, or TARGET HOLD for a duration of your own in seconds or beats, and TARGET TRANSITION to ease to their replacements. Callout circles are separate from the square tracking landmarks and crop indicators.
How do I connect the widgets with lines?
- CONNECT draws lines from the widgets TO SUBJECT (each to the nearest point on the face, hands or body), BETWEEN WIDGETS, or BOTH. AUTO keeps the dashed leader lines ORBIT, CORNERS and STUDIO LAYOUT draw, and OFF draws none.
- LINK SYSTEM joins widgets in a CHAIN, each to its NEAREST, all to the first (HUB) or ALL to each other.
- PORTS sets where a line leaves a widget: NEAREST EDGE, CORNERS or CENTER.
- LINE STYLE offers straight, curved, snake, lightning, dashed, right-angle ELBOW and FIELD LINES. FOLLOW LINE STYLE uses the HUD's LINE STYLE section. Other styles have their own FLOW, field-color and hue controls. LINE OPACITY, LINE WEIGHT, END TIP, END TIP SIZE and END TIP OPACITY shape these connections separately from the callout leaders.
- CONNECT REACT lets the mids add and drop links between widgets, and LINE LABELS: DISTANCE prints each line's length.
- KEEP CLEAR leaves out a line between widgets that would cross another widget or the subject. Widgets and inset panels always stay in front of tracking lines, even with KEEP CLEAR off: a line that passes behind a widget continues through it faint and softened, so you can still follow it to its point without it crossing the widget's drawing. Moving a widget also moves the clear area around it; the source picture remains visible through its transparent parts.
What words and numbers do the widgets show?
TOPIC picks the words: SYSTEM, TIME TRAVEL, QUANTUM PHYSICS, MOLECULAR BIOLOGY, ELECTRICITY, PHOTOGRAPHY, ASTRONOMY, FINANCE, CLIMATE, POPULATION, HEALTH or MIXED. Three more topics take your own material or the music's:
- CUSTOM uses YOUR WORDS, separated by commas.
- YOUR DATA shows your own figures in the charts and logs. Type rows in YOUR DATA as
LABEL, VALUE, UNIT, separated by semicolons, and add a low and high value to set how full a row's bar is. - LIVE AUDIO shows the music's own readings: the tempo, the bass, mids and highs, how fast the sound is changing (FLUX), how bright it is, and the loudness in LUFS with the true peak and loudness range. These are the same figures the Loudness tab shows; in a render, the loudness lines show the level instead.
How do I set the widgets' type and grid like a Swiss poster?
Open HUD, then HUD STYLE and LAYOUT:
- TYPEFACE sets every widget's words in MONO, SANS or SERIF.
- TYPE CONTRAST keeps each widget's own sizes at AS DRAWN, or sets all words on a strict scale: at 1:1 every word is one size, and at 4:1 the largest is four times the smallest. Words grow only a little past their usual size, so nothing runs into its neighbor.
- At 3:1 or 4:1, KEYWORDS 2× sets keywords at twice the body size.
- MODULE GRID ON snaps each widget to whole modules of a grid over the picture. Set GRID COLUMNS and GRID ROWS. A widget that would land on another takes the nearest free module.
- FRAME WIDGETS ONLY leaves out the title plate, the panels, the number columns and the ruler, so the widgets sit on the picture by themselves.
Studio's UI STATS layers have the same TYPEFACE, TYPE CONTRAST and KEYWORDS 2× controls. Their MODULE GRID (with GRID COLUMNS and GRID ROWS) snaps the layer's box to the grid as you drag it.
TYPE LOCKUP (in WIDGETS) sets a typographic block beside your subject: a large title, a small mark, a grid of keywords and a justified paragraph. Open its Configure button to write the TITLE and BODY, or leave them empty to follow the topic. Choose KEYWORDS to set how many keywords show; with TEXT SOURCE set to CUSTOM WORDS, they are your own words. ICON picks one of twelve drawn marks, sixteen Material Symbols, or UPLOADED for your own SVG or PNG. A keyword too long for its cell shrinks to fit.
SPREAD moves the gutter between the title and the keywords and opens the paragraph's line spacing. On the beat, the next keyword lights in the accent color and a ring draws around the mark.
Which looks set type like a Swiss poster?
FIELD JOURNAL keeps your picture in full color, drops the HUD plate and sets its widgets on a module grid in a serif face with large keywords, a TYPE LOCKUP, dimension lines and a ruler. Press REMIX for a new take in the same style, or change TYPEFACE and TYPE CONTRAST to make it your own.
How do I change the widget colors?
PALETTE sets the line color and accent together in one press: LAB, FIELD GUIDE, PHOSPHOR, AMBER CRT, BLUEPRINT, INFRARED, CYAN + MAGENTA or LIME. AS SET leaves your colors as they are. ACCENT adds a second color, ACCENT COLOR, for what is lit and for the beat's flash.
Can I send the widgets to a laser?
EXPORT ILDA saves the chosen widgets as a four-second looping laser file (specimen-ui-stats.ild) in the HUD's line color, moving at the session tempo, for a laser player or the ILDA Viewer. A laser draws a frame as one moving beam, so each frame is simplified to what it can scan at 30 frames a second: the outlines first, then words large enough to read. Choose two or three widgets for the most detail.
This is a standalone 2D loop with default widget appearance. EXPORT ILDA explains what to change when the selected set includes 3D MODEL OVERVIEW or configured widget options: remove the overview or reset those widgets' options. Use RENDER to preserve the full scene and configured design in video, or choose PRINT in Model Pulse for a still with crisp vector HUD text and lines.
How do I draw music as glowing notes and rings?
Open HUD → WIDGETS, then add LIGHT SCORE. Load an audio file and let its musical analysis finish, or supply MIDI. Choose SCORE SHAPE → LINE, RINGS or CURL. CURL bends the lanes into rings over CURL BARS; SCORE HISTORY controls the fading trail, and STRANDS PER NOTE adds fine spokes. Melody, chords, bass and drums have separate visual toggles.
Light Score uses the same notes as MUSICAL LANES in Audio Settings. Musical roles estimated from a mixed recording are visual groupings; hiding a part leaves the audio unchanged. An explicitly selected Light Score can draw without a detected tracking subject. Its musical position follows playback and video export.
How do I add music meters, point surfaces or flowing threads?
In Performer, open FX Rack → HUD → WIDGETS and add a widget by name. In Studio, add a UI STATS layer and choose the same widget. Load an audio file and wait for analysis to finish. These widgets can draw without a tracked subject.
| Widget | What it shows |
|---|---|
| MASTER MONITOR | Measured loudness, true peak, frequency bands and a short loudness history |
| WAVE PLATE | The track's waveform overview, current position and measured tempo |
| ORBITAL SCORE | Notes around a tilted point globe, with separate musical roles |
| POINT SPHERE | A point surface bent by the waveform |
| BAND RELIEF | Recent frequency-band energy as a point and line landscape |
| EVENT CONSOLE | Recent note attacks and onsets, with their source labels |
| BAND RECEIVER | Audio-frequency peaks and a scrolling band history |
| CORONAL THREADS | Fine loops around a small luminous core |
| WAVE HELIX | Crossing strands bent by the waveform and frequency bands |
| INK THREADS | Dark, asymmetric strands on flat warm-gray paper |
Open a widget's settings for its available point or strand count, spread, motion, guides and readouts. AUDIO RESPONSE sets reaction strength. Playback, seeking and video rendering follow the music's position.
WAVE HELIX also has SEPARATION, which fans its strands apart across the widget instead of keeping them in one tight ribbon.
Readouts use available audio measurements; missing measurements show a dash. Band landscapes interpolate the measured bands for display. Musical roles from a mixed recording are estimates, and hiding a role leaves the sound unchanged.
Where do I go next?
Return to the FX Rack overview to choose another task, or open tracking, windows, and masks for the other tracking effects.
FRAGMENT DECODE is also available in each widget’s TEXT IN and TEXT OUT options, including Studio layers. It can be combined with the widget’s own text period, duration and stagger.
