How to Convert SVG to ILDA — Free Online Laser Converter
To convert SVG to ILDA, open Image to Laser in BT Laser Studio, drop your SVG under
IMAGE SOURCE, check the traced outlines and POINT BUDGET, then click
DOWNLOAD ILDA. BeamTracer saves a Format 5 .ild file. Conversion and preview
run free in Chrome or Edge; sign in to download. Nothing needs installing.
The result: vector paths become colored laser outlines. Filled areas do not become solid light.
Hi, I'm Trina with BeamTracer.com — in this one I'll take an SVG from your desktop to a laser-ready ILDA file, start to finish.
The whole conversion in two and a half minutes. If you would rather read through it, here is the written version.
If you've ever wanted to project vector artwork with a laser, you've probably hit the same wall everyone does: most laser software means a paid, Windows-only desktop install and hours of learning curve before your logo ever leaves the lens. The steps below are the shorter path, plus the checks worth doing before any file touches a real projector.
How do I convert an SVG file into an ILDA file?

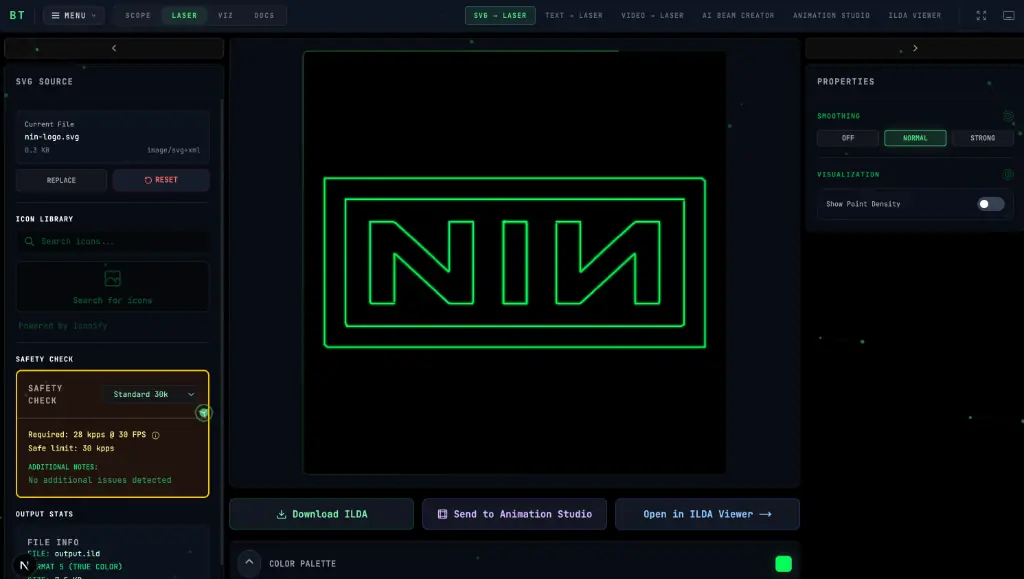

Load your artwork into Image to Laser in BT Laser Studio and it traces every SVG path into laser points, maps the SVG coordinates into ILDA coordinate space, and adds blanking between separate shapes. You adjust the trace, read the POINT BUDGET panel, and click DOWNLOAD ILDA. No account is needed to convert and preview; a clean ILDA download asks you to sign in.
- Open Image to Laser in Chrome or Edge — the studio is built and tested against them.

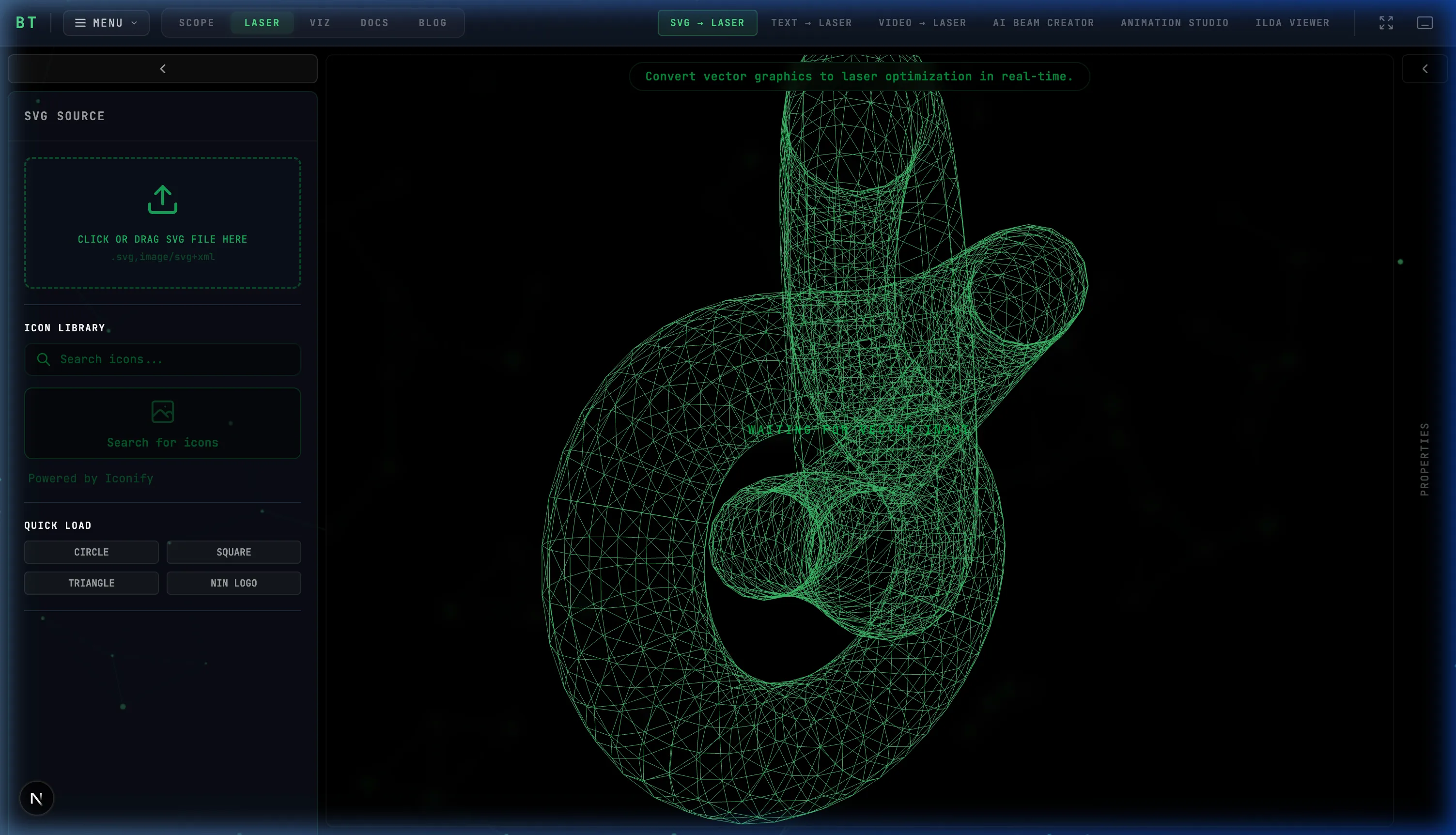

- Drag an SVG onto the canvas under IMAGE SOURCE, search ICON LIBRARY for one of 200,000+ Iconify icons, or pick a QUICK LOAD shape to test the pipeline.
- Set SIMPLIFY and SMOOTH CURVES under TRACE until the traced path still reads as your artwork.
- Switch on SHOW POINT DENSITY to see where stored points cluster.

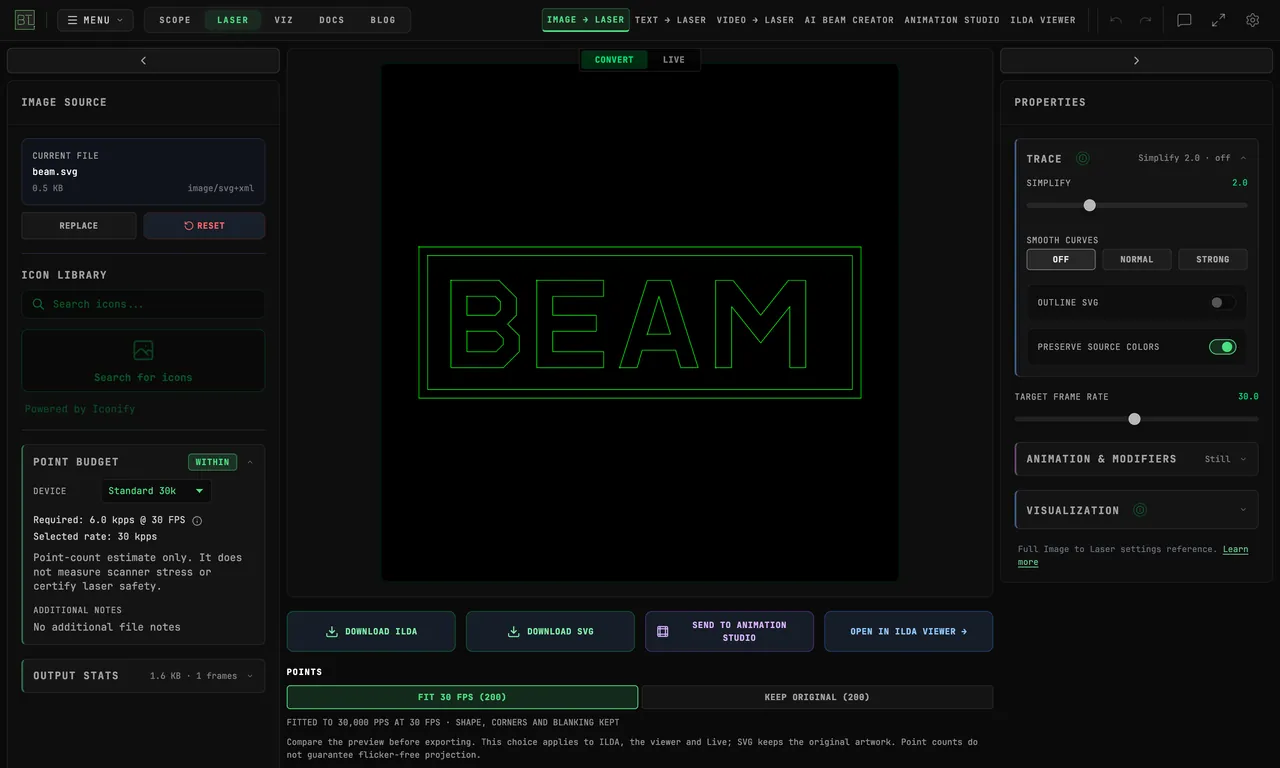

- Read the POINT BUDGET panel and compare FIT 30 FPS with KEEP ORIGINAL; a large difference means the trace needs cleanup. The fit label follows TARGET FRAME RATE.

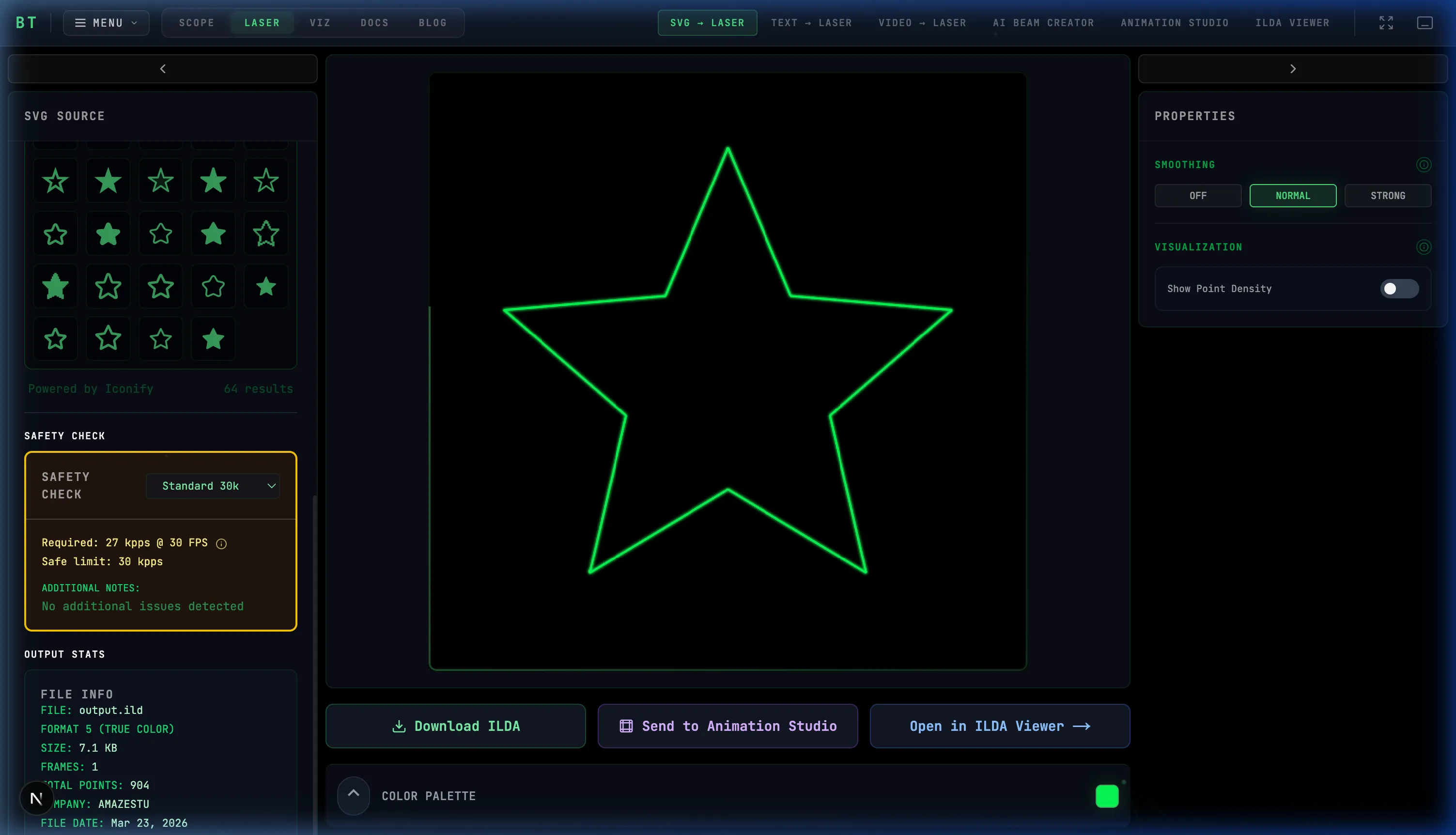

- Check OUTPUT STATS for the ILDA filename, format, frame count, and total points.
- Click OPEN IN ILDA VIEWER → for the stress heat map, point classification, scanner path, and full safety report.

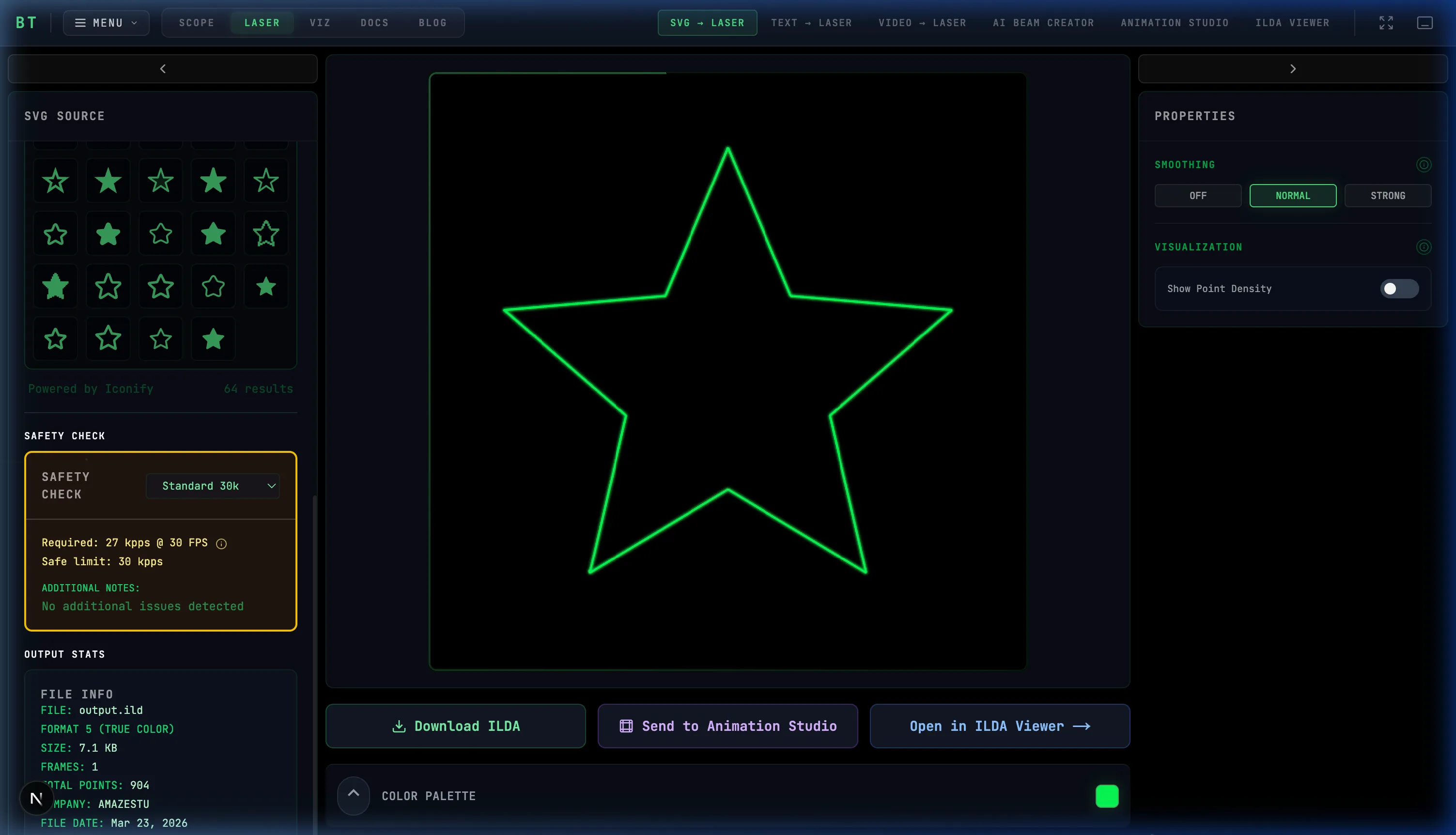

- Click DOWNLOAD ILDA to save the
.ildfile as ILDA Format 5 (2D True Color), or use DOWNLOAD SVG to save the vector artwork.
New to BT Laser Studio? The getting-started tour covers the app those steps run in: Getting Started with BT Laser Studio.
How do I take the same artwork into Animation Studio?
Choose SEND TO ANIMATION STUDIO in Image to Laser to continue with the loaded artwork as an editable layer. You can add movement there and inspect the resulting frames with OPEN IN ILDA VIEWER →. Stay in the same browser tab for these handoffs; download files when you need a portable copy.
- Load your SVG in Image to Laser and compare the preview with the original.
- Click SEND TO ANIMATION STUDIO to open the artwork in Animation Studio.
- Confirm the artwork appears as a layer in TIMELINE before adding other shapes or animation.
- Click OPEN IN ILDA VIEWER → to inspect the generated frames and FILE HEALTH.
- Return to Animation Studio and use DOWNLOAD ILDA when the animation is ready for a compatible file player.
Press play to follow the same triangle through three workspaces. Animation Studio makes an editable layer; ILDA Viewer receives the generated frames. This silent browser demonstration uses no laser hardware.
The example begins with a still triangle. Its three-second timeline becomes 90 frames, but repeated frames alone do not make the triangle move. Add and preview an animation when you want changing geometry. ILDA carries the resulting paths and colors; the soundtrack remains separate. For a logo reacting to music, follow audio-reactive laser logos.
Which ILDA format does the export produce?
DOWNLOAD ILDA always writes ILDA Format 5 (2D True Color) — full RGB per point, the modern default — named after your source file. The POINTS chooser selects the fitted or original point count before download. If your hardware needs Format 0 or Format 1 output, open the file in the ILDA Viewer and convert it through the EXPORT ILDA dialog there.
Open exported ILDA files in compatible show software or a file player. A DAC connection alone does not mean that a device can read files; check its guide.
Is converting SVG to ILDA free?
Converting and previewing in Image to Laser is free and needs no account. The ILDA download draws on an export allowance tied to your BeamTracer account: Studio subscribers get unlimited clean exports, and below Studio you get 3 clean exports per calendar month, shared across every ILDA download button. Every export is clean at any tier. The ILDA Viewer is free for everyone with no account. Current plans are on Pricing.
Do I need to install anything?
Nothing. BT Laser Studio runs in a browser tab — use Chrome or Edge, because the studio is built and tested against them and live Helios output runs on WebUSB, which only Chromium-based browsers implement. Ether Dream and LaserCube go through the BeamTracer Bridge. That is the honest caveat up front: no Firefox, no Safari, and we would rather say so than let you find out at the venue.
What is an ILDA file?
ILDA (International Laser Display Association) is the standard file format for laser show content. It stores:
- Point coordinates (X, Y positions for the beam)
- Color data (RGB values at each point)
- Blanking flags (when the beam should turn off between shapes — see Laser Blanking Explained if your letters come out joined)
- Frame sequences (for animation)
There are several ILDA format variants (Format 0 through Format 5), with Format 5 being the most modern and supporting true-color RGB values.
Why does SVG artwork convert well to laser?
SVG (Scalable Vector Graphics) and laser projectors are a natural match:
| SVG Elements | Laser Equivalent |
|---|---|
| Paths & lines | Beam traces |
| Stroke colors | Laser RGB values |
| Filled shapes | Contour outlines; no solid projected fill |
| Viewbox coordinates | ILDA coordinate space (-32768 to 32767) |
The key insight: laser projectors draw outlines, not fills. SVG paths map directly to laser beam paths — you just need to convert the coordinate system and add appropriate blanking between shapes.
How do I clean up imported SVG artwork without losing the logo?
Keep the SVG's recognizable corners and separate paths while removing redundant points. Use SIMPLIFY first, apply SMOOTH CURVES only where the artwork needs curved smoothing, and compare FIT 30 FPS with KEEP ORIGINAL before downloading. Fitting a complicated trace can remove paths; a smaller source drawing usually reads better.
- Drop the SVG under IMAGE SOURCE in Image to Laser.
- Turn on OUTLINE SVG under TRACE to inspect the contours of filled artwork.
- Raise SIMPLIFY gradually while checking the letters, sharp corners and gaps in the preview.
- Adjust SMOOTH CURVES for curved paths, and turn on SHOW POINT DENSITY to inspect clusters.
- Keep PRESERVE SOURCE COLORS on for the original palette, or turn it off and choose a color under COLOR.
- Read POINT BUDGET and the POINTS counts; remove tiny source details if fitting loses important paths.
- Choose OPEN IN ILDA VIEWER → to review the trace, then return to Image to Laser.
- Click DOWNLOAD ILDA to save the chosen point count as a Format 5
.ildfile.
Only have a bitmap? PNG or JPG Logo to ILDA shows COLORS cleanup for noisy JPG edges. An SVG already contains paths, so those bitmap tracing controls are not the starting point.
How should I prepare SVG artwork before importing it?
Use clean paths with recognizable contours and remove tiny decoration before importing. Single strokes are useful for line art; filled shapes still produce contour outlines, not a solid projected fill. Four habits help:
- Keep it simple — lasers draw best with clean, well-separated shapes
- Choose the intended contour — a filled shape projects around its edges; a single stroke follows its path
- Avoid tiny details — galvanometer mirrors have physical speed limits
- Check point count — use POINT BUDGET for your selected scanner and frame rate
Check the contour before exporting
A filled SVG logo can be imported directly. OUTLINE SVG shows its contours in the vector preview; the laser follows those edges rather than filling the interior. For a single line through a thick letter, use an SVG designed with single strokes instead of expecting an outline to turn into a center line.
How do I check a converted file before it reaches a projector?
Read POINT BUDGET and OUTPUT STATS in Image to Laser first: the point-budget badge tells you whether the heaviest frame fits your selected device profile at the chosen frame rate, and OUTPUT STATS reports the filename, format, size, frame count, and total points. For the Stress Heat Map, Point Classification, Scanner Path, and deeper file analysis, choose OPEN IN ILDA VIEWER →. These diagnostics review the artwork; they cannot certify safe projection.
Follow your projector and venue safety procedure
Test new artwork only under the controls and procedure established for your projector and venue. Keep the assessed beam paths, termination, physical limits, masks, interlocks, and controlled area in effect. A low-power setting or eyewear does not make an otherwise unassessed path safe.
The laser show safety guide covers the US rules behind that paragraph in full.
What else can BT Laser Studio convert to ILDA?
BT Laser Studio doesn't stop at SVG conversion:
- Text to Laser — type any text with 1,500+ Google Fonts and convert to laser-ready ILDA
- Video to Laser — convert a video file to ILDA frames or trace a camera or screen live, then open the tool
- Animation Studio — create keyframed animations with audio-reactive modulation
Try it now — no install, sign in only to download
OPEN IMAGE TO LASER →Should I start with SVG, PNG or JPG artwork?
Use the original SVG when you have it: the vector paths retain the designer's curves and separate shapes. A transparent PNG is a useful fallback; a JPG may need COLORS cleanup to remove compression contours. Follow the PNG/JPG workflow for bitmap tracing, or Audio-Reactive Laser Logo to animate individual parts after conversion.
Want the byte-level detail? The docs cover the ILDA format and its format versions — headers, coordinate space, and where Format 0 and Format 5 differ.
For a seasonal project, try the Halloween laser ideas guide: choose a pumpkin SVG or ghost animation, convert the artwork, and check the resulting laser frames.
