Spirograph Generator
Create mathematical spirograph figures with progressive draw-in animation, rainbow coloring, seamless loops, and live point-rate estimates for ILDA laser export.
The Spirograph Generator creates hypotrochoid and epitrochoid curves — the mathematical figures produced by nested rotating circles. These generate intricate, symmetrical patterns that are naturally suited to laser projection.
Quick Start

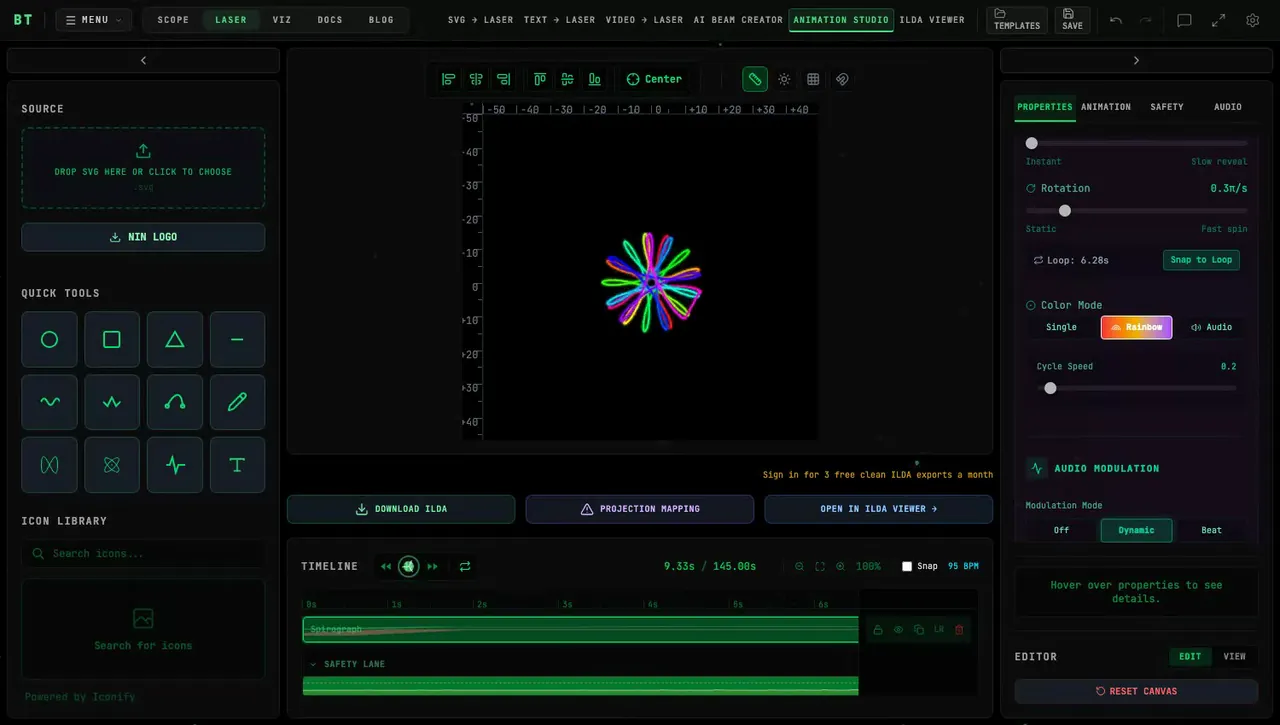

Open Animation Studio and add a new layer
In the Properties panel, select Spirograph from the shape type dropdown
Choose a preset from the Library selector — try 5-Point Star or 3-Petal Rose to start
Press Play to see the progressive draw-in animation
⌘/Ctrl + Click the Spirograph tool button in the Assets sidebar to instantly stamp a 40×40 centered spirograph shape.
Basic vs Pro Mode
Basic Mode
Designed for quick results with intuitive sliders:
| Slider | What it controls |
|---|---|
| Complexity | Number of lobes/petals — higher values create more intricate patterns |
| Shape | Move the pattern from rounded to pointy |
| Size | Overall diameter of the pattern |
| Curve Type | Inside or Outside rolling-circle geometry |
| Draw Animation | Instant drawing or a reveal lasting up to 10 seconds |
| Rotation | Static through fast continuous spin; Snap to Loop matches the layer duration |
| Color Mode | Single, Rainbow, or Audio when a track is loaded |
Pro Mode
Full mathematical control over the spirograph equations:
- Fixed Circle (R) — outer circle radius
- Rolling Circle (r) — inner circle radius
- Pen Distance (d) — distance from the rolling-circle center
- Resolution — 200–2000 points, with the current PPS estimate and load warning shown below it
The mathematical relationship between R, r, and d determines the shape. When R/r is a simple fraction (like 3/1 or 5/2), the pattern closes cleanly.
Presets
The Library selector includes 15 built-in presets:
| Preset | Description |
|---|---|
| 5-Point Star | Classic five-pointed star pattern |
| 7-Point Flower | Seven-lobed flower |
| Trefoil | Three-lobed figure |
| Complex Web | Dense multi-lobed pattern |
| Simple Ellipse | Open, easy-to-read curve |
| Dense Spiral | Tightly packed spiral |
| 3-Petal Rose | Three-petal rose curve |
| 8-Point Burst | Eight-point radial burst |
| Cardioid | Heart-shaped single-lobe curve |
| Nephroid | Rounded double-lobed curve |
| Rainbow Flower | Flower with animated rainbow color |
| Spinning Star | Star with continuous rotation |
| Draw Reveal | Pattern configured for a progressive reveal |
| Morphing Bloom | Flower that changes shape and color over time |
| Audio Reactive | Pattern color driven by the loaded audio track |
Click the Randomize button to generate visually interesting random patterns.
Multi-Layer Presets
The Spirograph panel also includes one-click multi-layer presets that build a complete animated composition across several layers:
| Preset | What it builds |
|---|---|
| Rainbow Center | Centered rainbow spirograph with spin (4s loop) |
| Triangle Breathe | 3 spirographs breathing in/out (4s loop) |
| Draw Cascade | Nested shapes that draw in sequence (4s loop) |
| Audio Spectrum | 3 spirographs reacting to Bass/Mid/Treble |
| Morph Dance | Morphing shape with rainbow (8s loop) |
Preset layers count against Animation Studio's 10-layer limit — if a preset needs more slots than you have free, remove layers first.
Progressive Draw-In Animation
The spirograph reveals itself progressively during timeline playback — like watching a pen trace the curve in real time.
- Draw duration sets how long the reveal takes
- The layer and global timeline auto-extend to fit the draw duration
- Combine with rotation animation for spinning spirographs that reveal as they turn
Rotation Animation
Enable continuous spinning with a configurable speed (in π radians/second). The spirograph rotates smoothly while maintaining its shape — effective for hypnotic background loops.
Rainbow Color Mode
Toggle Rainbow to apply full-spectrum HSL coloring along the curve path. Each segment of the spirograph gets a different hue, creating a prismatic effect that works well on both screen and laser.
Perfect Loop Detection
The generator automatically calculates the mathematically exact loop duration — the point at which the curve returns perfectly to its starting position. This ensures seamless, flicker-free looping on laser hardware.
Not all R/r/d combinations produce closed curves. The loop indicator shows whether the current parameters will loop cleanly or spiral indefinitely.
Point-Rate Check
Real-time PPS estimates and scanner-load warnings appear as you adjust parameters. Higher resolution increases the exported point count and the required PPS at a given frame rate. Compare those values with the intended hardware's stated test condition; they do not certify hardware or venue safety.
See Understanding PPS for details on point-rate ratings and test conditions.
