How do I inspect an ILDA file before connecting a projector?
To inspect an ILDA file before connecting a projector, load the .ild file in BeamTracer's ILDA Viewer, read FILE HEALTH, and inspect the paths in 2D. Compare IDEAL and PHYSICS mirrors for a simulated scan, then view the same artwork in Cinema. These previews help you inspect a file; physical setup still needs separate checks.
Hi, I'm Trina with BeamTracer.com. A file can make sense as a clean outline and become harder to read when a scanner has to draw it. The Viewer gives you several ways to examine the same content before you decide what to test on hardware.
What should I check first in the ILDA Viewer?
Load your file in the ILDA Viewer and start with FILE INFO and FILE HEALTH. Confirm that you loaded the intended file, then read the warnings before changing the preview appearance. Choose a DEVICE profile that represents the scan rate you want to inspect.
Use the 2D view to examine the artwork itself. On an animation, step through more than the first frame: a simple opening can lead into a much denser picture. The Viewer guide explains file limits, playback and the diagnostic panels.
If you need something to learn with, TEST SUITE → PATTERN loads a reference pattern. Keep that separate from your own artwork. A reference pattern helps you understand a control; it doesn't establish that a different file will behave the same way.

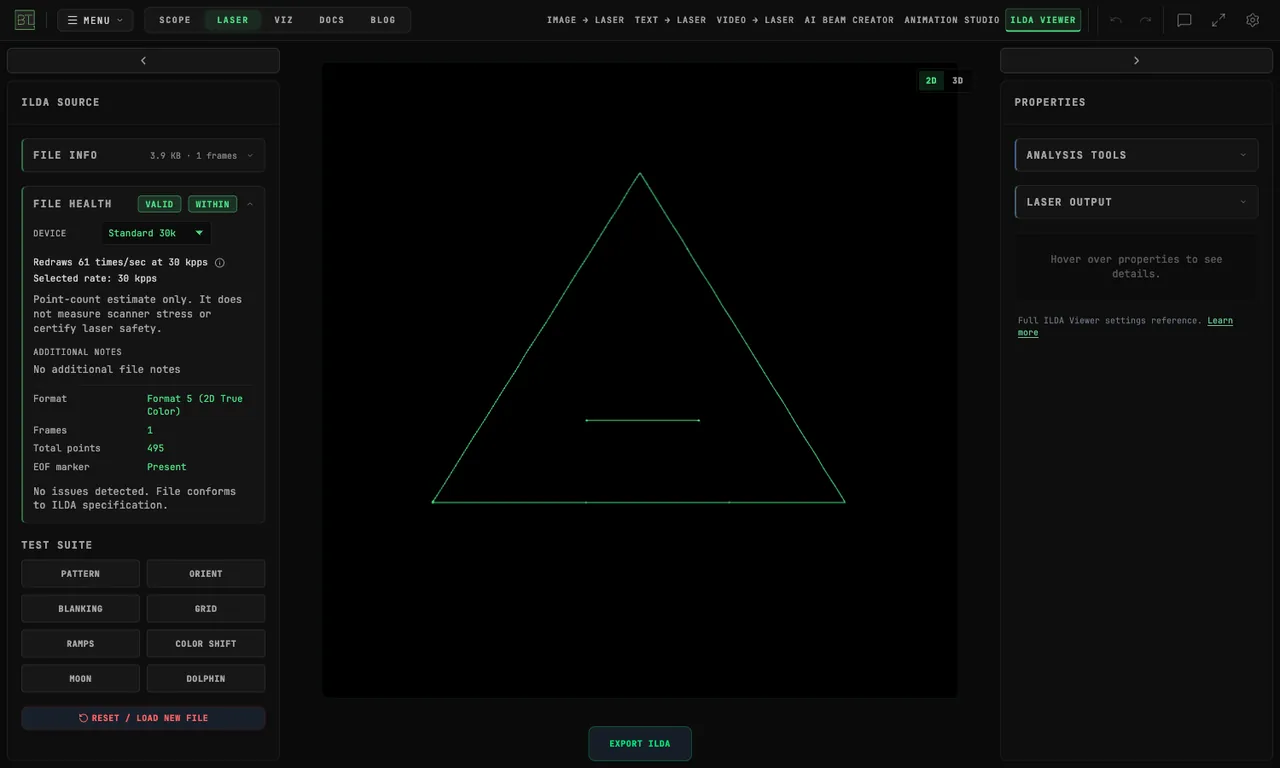

The drawing was exported from Image to Laser and loaded as a native Format 5 file. File Health describes the file; it is not a hardware safety approval.
What is the difference between IDEAL and PHYSICS mirrors?
IDEAL draws the positions commanded by the file. PHYSICS estimates how scanner mirrors follow those commands. Use the comparison to examine what the simulation changes in corners, jumps and dense sections of the drawing.
The SCANNER choice selects a simulated scanner class. The presets are approximate; choosing one does not identify, measure or certify your projector. SCAN ANGLE changes the optical angle used by the simulation. Check that setting when comparing results, because it changes how far the simulated mirrors must travel.
PREVIEW SPEED controls how quickly you watch the simulated scan. The simulated mirrors still use the scan rate selected by DEVICE. Slowing the preview is useful for following a stroke, but it doesn't reduce that simulated scan rate.
The 3D Beam Viewer guide explains these controls. Keep the file, frame and settings fixed while you compare mirror modes, so the comparison answers one question at a time.

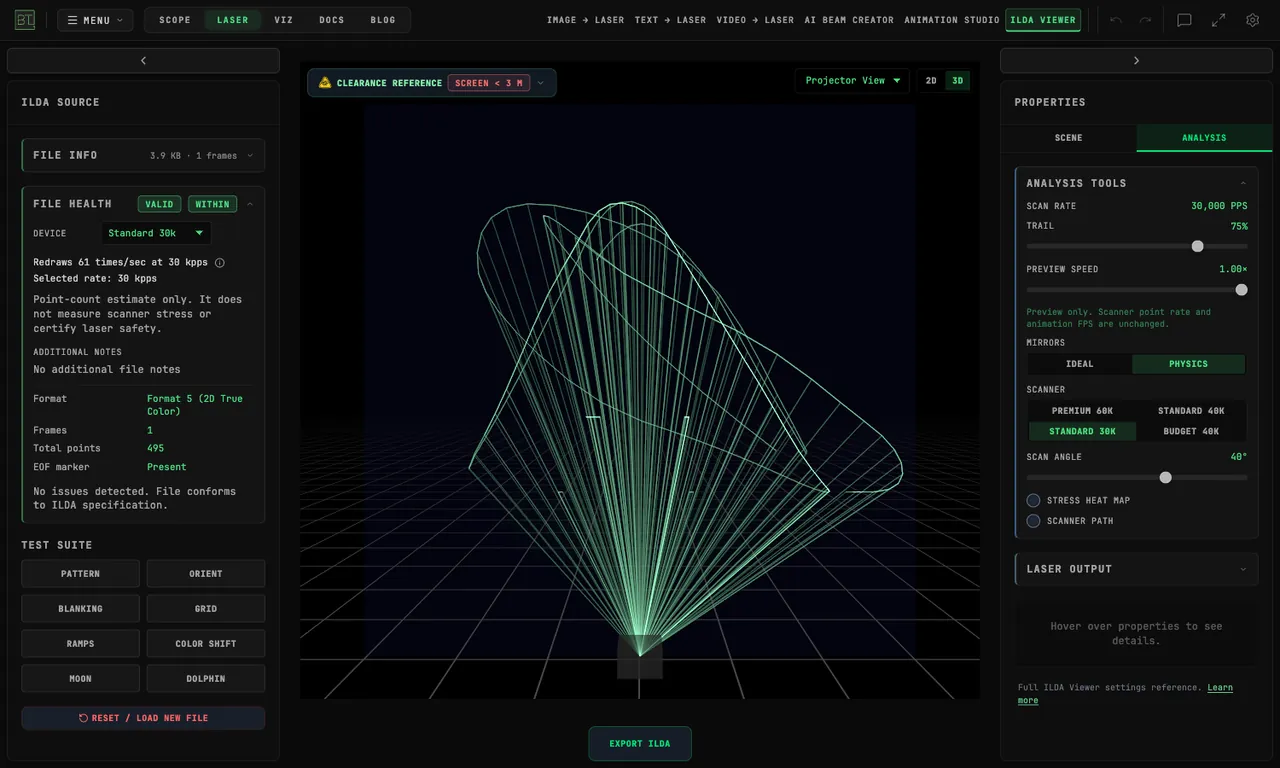

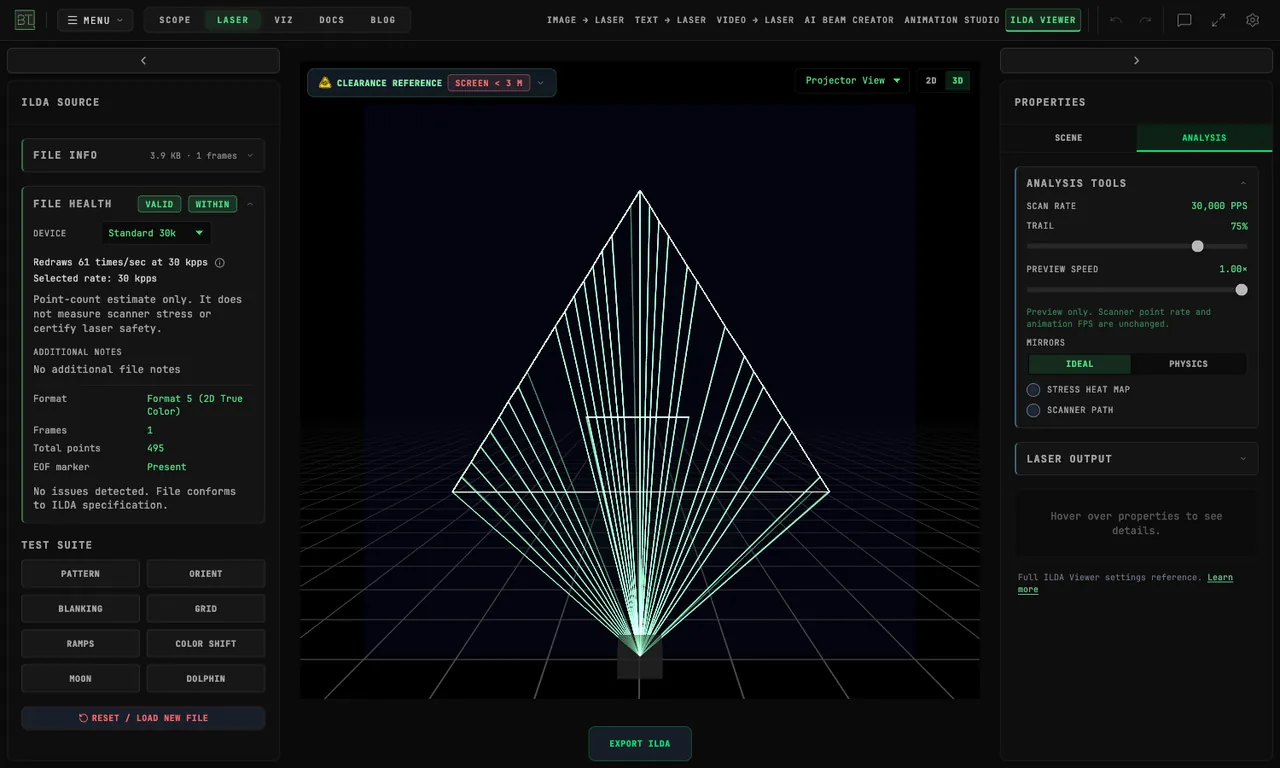

Same file, Projector View, 30,000 PPS, 75% trail and full preview speed. PHYSICS uses STANDARD 30K at a 40° scan angle. These are actual simulated previews, not measurements of a projector.
How do I compare scanner settings on my own file?
Inspect one frame in both mirror modes, then repeat with a denser frame if your file is animated. Record which device profile, scanner class and scan angle you used so you can revisit the comparison.
- Open ILDA Viewer and load your
.ildfile through CLICK OR DRAG ILDA FILE HERE. - Read FILE HEALTH and choose the intended DEVICE profile.
- Open the Galvo preview and select MIRRORS → IDEAL.
- Select MIRRORS → PHYSICS, then choose a SCANNER class and check SCAN ANGLE.
- Reduce PREVIEW SPEED to follow the simulated beam, then compare another frame with the same settings.
- If you need a revised ILDA export, return to the tool that authored the artwork, make the change there, and export a new
.ildfile for another inspection.
Changing the Viewer settings changes the preview. It doesn't rewrite the points in the loaded file. To change the artwork or its blanking, go back to the authoring workflow. Image to Laser and Animation Studio have their own export controls.
Why should I also view the file in Cinema?
Cinema puts the artwork in a simulated venue so you can look at the beam arrangement from different positions. A camera orbit complements the close 2D view: the same content is placed in a scene, with a projector and reference surfaces around it.
Select 3D, then SCENE → BEAM MODE → Cinema — Premium fog, and choose Orbit Mode. Keep your own file loaded while you do this. Changing to a more attractive example would stop the preview from answering your question about the file you plan to use.
The scene is useful for explaining an idea to someone else. Describe any screenshot or recording as a simulated preview, especially when sharing it with a client who might assume it shows a real venue. Actual haze, equipment and camera exposure can produce a different appearance.
The same artwork in a software venue view. The poster is an encoded frame from the clip. The recording is silent. Preview Cinema in the ILDA Viewer; Studio includes its unwatermarked view.
Does a clean preview mean the file is safe to project?
A clean preview gives you information about the file and the selected simulation settings. A real installation also depends on the projector, beam path, audience position and the operator's safety procedures. Review the laser safety guide and Laser DAC Output guide before connecting physical output.
Keep any hardware test separate from this browser inspection. A Cinema scene or a File Health result cannot approve a venue installation. If a warning is unclear, resolve the warning before treating the file as ready for further testing.
For stray connections between letters or shapes, read the blanking guide. For dense artwork, point rate explained covers the difference between points per second and complete frames.
Start with your file in ILDA Viewer, keep the inspection settings written down, and compare the revised export against the original.
