How to Add a Countdown Timer to a Workout Video (HIIT)

To add a countdown timer to a workout video, open BeamTracer Studio in your browser, start from the BLANK template, and upload your MP4 as the backdrop. ADD LAYER → TIMER → WORKOUT puts the interval clock, section name, whole-workout clock and a progress ring on one card. Set the work and rest lengths, then EXPORT → RENDER VIDEO writes a finished MP4.

Hi, I'm Trina with BeamTracer.com, and this is my full walkthrough for putting a real interval countdown on workout footage — work, rest, rounds, all of it.

You have the footage. Forty-five seconds of mountain climbers, shot on a phone, propped against a water bottle. What it needs is the number in the corner ticking down to zero, because that number is the entire reason a follow-along workout works — nobody counts their own reps while their heart rate is at 170.

So you go looking for how to add one, and every answer is worse than the last. Buy a plugin. Screen-record your phone's clock app and key out the background. Keyframe a text layer by hand, forty-five times. Subscribe to a template site.

None of that is necessary. A countdown is a clock drawn on top of a video, and drawing it takes about ninety seconds in a browser tab.

How do you add a countdown timer to a workout video?

You add a timer layer rather than animating text into looking like one. In BeamTracer Studio the countdown reads the clip it is drawn over, so it starts at the right number and lands on 0:00 without a single keyframe. Here is the whole job, start to finished MP4.

The whole thing, start to finish, in under two minutes. The written guide below covers the same ground with more detail on the parts worth understanding — the nine timer formats, how intervals repeat, and why the export window is the thing that matters.

CLICK TO ENLARGE

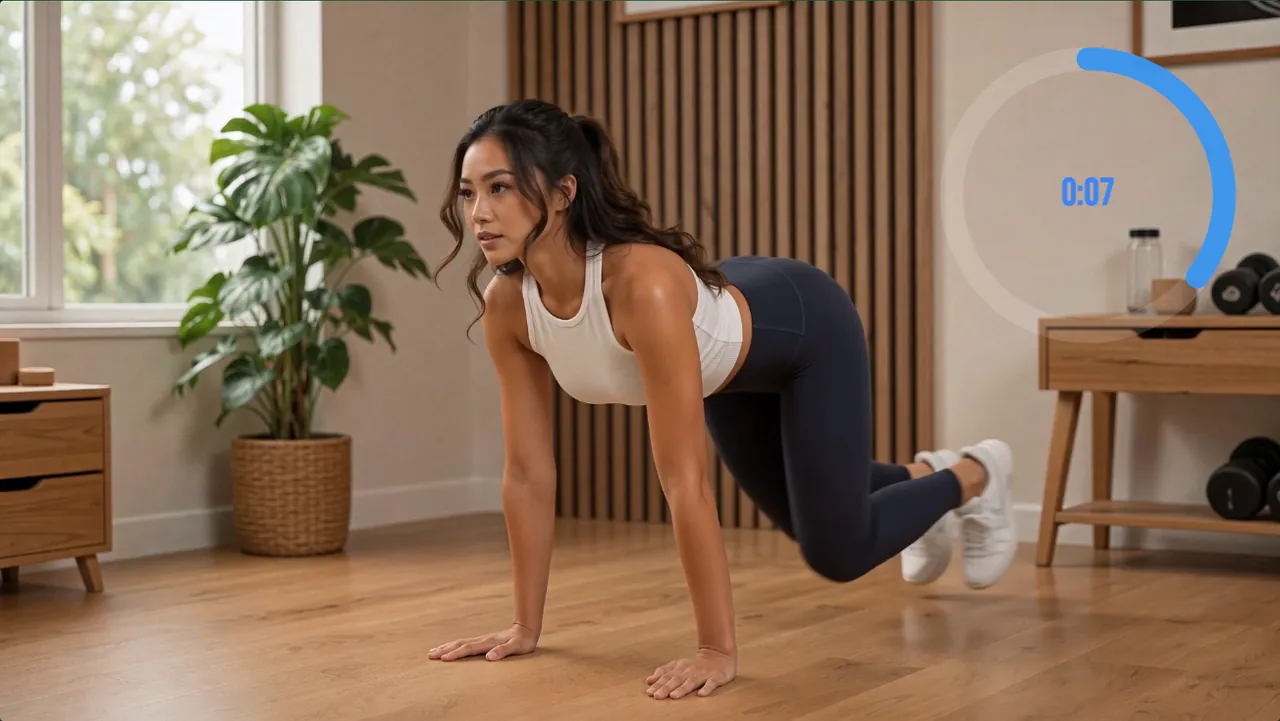

The finished frame: your footage as the backdrop, a ring that closes as the interval runs, and the clock counting down inside it. No keyframes were placed to make either of them move.

Why are the usual countdown methods so painful?

Because none of those tools has a timer. They have text, and you are being asked to animate text into looking like a timer. It's worth being specific about what you're escaping, because each of these is somebody's honest recommendation and each has a real cost. These are the routes the tutorials were still recommending when I checked in August 2026:

A layer that knows what time it is removes the whole problem.

How do you put your own footage behind the timer?

Start from an empty frame and upload the clip as the backdrop. BeamTracer Studio's default template is built for music videos — cover art, title, artist — and for a workout clip you want nothing in the frame but your footage.

CLICK TO ENLARGE

TEMPLATES in the header. DEFAULT is the music-video layout; BLANK is an empty frame.

Which progress shape should you put around the countdown?

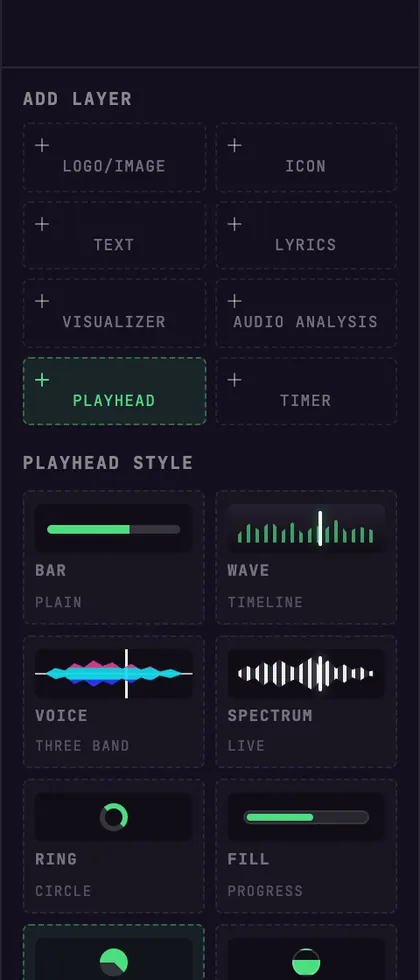

RING is the interval-timer shape. A bare number works, but a number inside a ring works better, because a follow-along viewer reads shape faster than digits — you can see roughly where you are out of the corner of your eye without focusing on it. ADD LAYER → PLAYHEAD opens a picker of eight progress styles:

If you are using the WORKOUT timer, its overall ring or line is already part of the card, so you can skip the separate playhead. Add one only when you want a second, larger progress shape elsewhere in the frame.

Place the RING where you want the clock to sit, then set THICKNESS — the default is heavy enough to dominate the frame, and somewhere around a fifth reads as a timer rather than a graphic. X SCALE and Y SCALE set the diameter.

The ring fills as the clip plays. Paired with a DOWN clock that gives you both halves of the picture at once: the ring is how much of the interval is done, the number is how much is left. There is no drain option for a ring — the fill / drain choice belongs to the DISK style.

BAR across the bottom is the other one worth knowing: it stays out of the way entirely and still tells the viewer where they are.

Which countdown format should you choose?

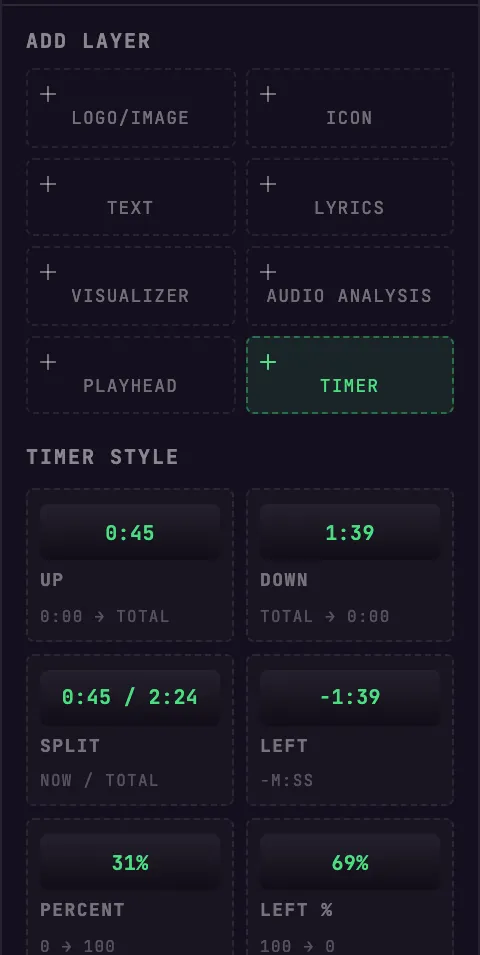

ADD LAYER → TIMER turns the rail into a style picker with a live sample of each format, so you can see the exact shape of the number before you place it. DOWN is the classic interval countdown; WORKOUT is the one to take when the video contains work, rest and rounds.

What does the countdown count down from?

The export window. Not the file, not the timeline — the window that is going to be rendered. By default that window is the whole clip, so a 45-second video gives you a countdown starting at 0:45. Everything below follows from that one fact, and it is what makes the timer work without any keyframes at all.

WORKOUT uses that same window as the total workout length, then runs its section schedule inside it. Shorten the export window and both the whole-workout clock and the visible interval lane update together.

Here is a ten-second window running, so you can see what "the timer counts the window" actually looks like — it starts at 0:10 because the clip is ten seconds, and it lands on 0:00 at the last frame:

No keyframes were set. The clip is ten seconds, so the countdown is ten seconds.

CLICK TO ENLARGE

FRAME in ADVANCED. TRIM FOR EXPORT is the control that sets what the countdown counts.

How do you build a 45-on, 15-off interval schedule?

That is what the WORKOUT timer is for. With the card selected, open WORKOUT SCHEDULE and author the pattern once — the interval lane under the canvas lays it over the waveform, and every repeated round comes from the same pattern.

For the Apple Fitness-style treatment, start with DARK GLASS or LIGHT GLASS. Choose RING for a compact total-progress mark beside the lower clock, or LINE for a quieter bar along the card's bottom edge. Then adjust GLASS EFFECT, BACKGROUND BLUR, CARD OPACITY, and CORNER RADIUS. The interval clock, section label, whole-workout clock, progress, track, divider, glass tint, and border can all have separate colors; USE PHASE COLORS lets the active work/rest color take over automatically.

Use the normal header SAVE when you want this exact workout to reopen with the project. MY PRESETS → ADD LOOK saves the design without replacing another workout's schedule; ADD LOOK + SCHEDULE saves both when the interval pattern is the reusable part.

How do you export the finished workout video?

EXPORT shows a summary — platform, frame, rate, file, length, audio, and every layer that will appear. Read it once; it's faster than re-rendering. Then RENDER VIDEO writes the real file to your machine.

CLICK TO ENLARGE

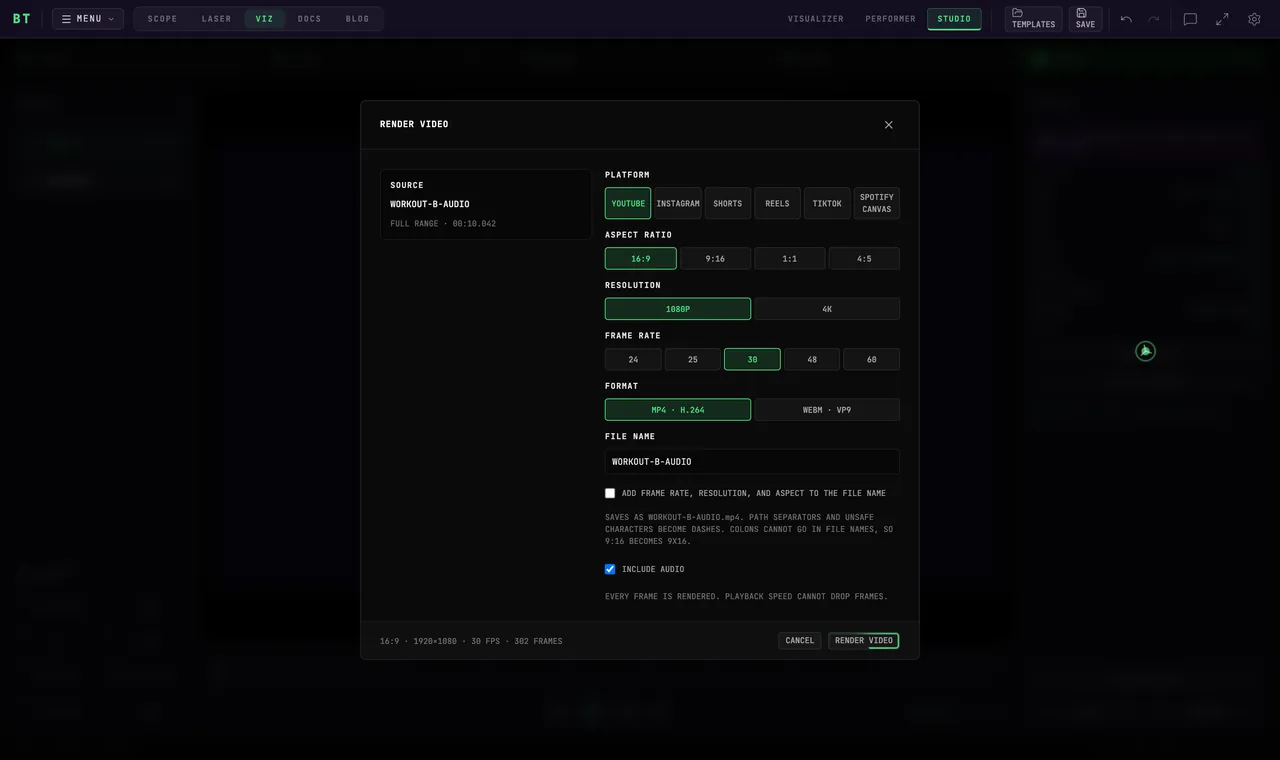

The footer restates the frame, size, rate and the exact frame count before you commit to a render.

CLICK TO ENLARGE

The EXPORT summary. Read it once before a long render — it is faster than re-rendering.

Rendering can take longer on a slower machine. Check the saved video before publishing: play through the timer boundaries and confirm that the backdrop, clocks, and audio are what you intended.

Is it free, and is there anything to install?

Everything above runs in a browser tab. There's nothing to install and you don't need an account to try it. The free tier covers ten finished exports a month and they carry a BeamTracer watermark — the render dialog says so before you commit. Building the project and previewing it are never counted; only a saved file is. See Pricing for what each plan includes.

Does the countdown need music?

No, and the way this works is worth knowing.

BeamTracer Studio was built around audio, so the natural assumption is that a timer needs a soundtrack. It doesn't. If the only thing you load is a video, the video's own length becomes the timeline and every timer, playhead and analysis layer follows it.

Load both a music track and a video, and a MUSIC · VIDEO · MIX control appears on the transport. That control picks which source you hear and which one drives the timing. The EXPORT summary names the source it is using, so you can confirm before rendering.

For a workout video the usual choice is: music track for the soundtrack, and the video for the vocal cues — or MIX for both.

How does BeamTracer Studio compare with the other timer methods?

What should you check before you upload?

Play the rendered file, and check three things. They are the three that go wrong.

1. The length matches the LENGTH row in the export summary.
2. The audio is there, if you meant to include it. A video-only render is silent by design when INCLUDE AUDIO is off.
3. The backdrop did not vanish. If your footage was WebM, this is where you find out. Re-upload as MP4.

Then scrub to the frame you want and use YOUTUBE THUMBNAIL on the export step — it saves the current preview frame as a 1280 × 720 JPEG under 2 MB, which is exactly YouTube's custom-thumbnail spec.

Where to go next

If the video is a whole session rather than one exercise — a warm up, five moves, a recovery after each, a cool down, all in one long take — that is what the WORKOUT style was built for, and it gets its own guide: workout timer overlays for long videos.

If you already cut in a specific editor and only want the countdown from Studio, the workflow is the same and the handoff is an MP4 on your timeline — adding a countdown timer in Final Cut Pro and adding a timer to a video in CapCut both cover the version where Studio is one step in a longer edit rather than the whole thing.

And if what you actually want is a stopwatch counting up rather than a countdown — how long a lap took, how long the glue needed, how long the whole build ran — that is the same layer with a different style: a timer overlay without screen-recording your phone.

Go build that first schedule. beamtracer.com — I'll see you in the next one.
