What Audio Effects Look Like on an Oscilloscope
On an XY oscilloscope every audio effect has a visible signature: a low-pass filter rounds the corners off the figure, reverb adds a halo without smearing it, delay draws an offset ghost, bit reduction turns curves into staircases, and a phaser makes the shape drift. In BeamTracer's OSC-1 you can watch each one happen live, in the browser.
Hi, I'm Trina with BeamTracer.com — this one's a two-way dictionary: what each audio effect does to an XY trace, and how to read a trace back into sound.
You already know what a low-pass filter sounds like. Close it and the track gets darker, rounder, further away.
Here is the part nobody tells you: on an XY oscilloscope you can watch it happen. Close the filter and the corners of the picture round off, in real time, in exactly the way the sound does. Every audio effect has a visual signature, and once you know the vocabulary you can read a scope screen the way you read a spectrum analyser.
What do audio effects look like on an oscilloscope?
| Audio effect | What it does to the picture | Why |
|---|---|---|
| Low-pass filter | Corners round off; the outline smooths and loses detail | The sharp turns are the high frequencies — remove them and the beam can't turn quickly any more |
| Reverb | The shape stays where it is and gains a shimmer around it | The added energy arrives at roughly the figure's own rate, so it thickens rather than smears |
| Delay | A ghost of the outline, offset from the original | A repeat is the same path drawn again a moment later |
| Distortion | A consistent warp — the same bend applied to any shape you feed it | Distortion is a fixed rule mapping input level to output level, so it warps every figure the same way |
| Bit or sample-rate reduction | The beam holds a position, then jumps: staircases and dots | Each point is held for a fixed interval instead of moving continuously |
| Phaser | The shape differs from the original — and how it differs drifts over time | Frequency-dependent cancellation that moves |
| Ring or amplitude modulation | New structure appears; a harmonically related modulator keeps it stable | Multiplying one signal by another adds detail at the modulator's rate |
And the dictionary runs both ways: anything that bends the picture is a distortion of the sound, for reasons we'll get to at the end.
Why does an audio effect change the picture at all?
An XY oscilloscope has no picture in it. It has one moving point, and two voltages telling that point where to go: the left channel drives it horizontally, the right channel drives it vertically. That's the whole machine.
Which means the drawing and the waveform are not two things. They are the same thing looked at two ways — and it explains the single most useful rule on this page:
The single most useful rule on this page
A sharp corner is the beam changing direction fast, and moving fast is what a high frequency is. Detail in the picture lives in exactly the same place as brightness in the sound. Everything below follows from that one sentence.

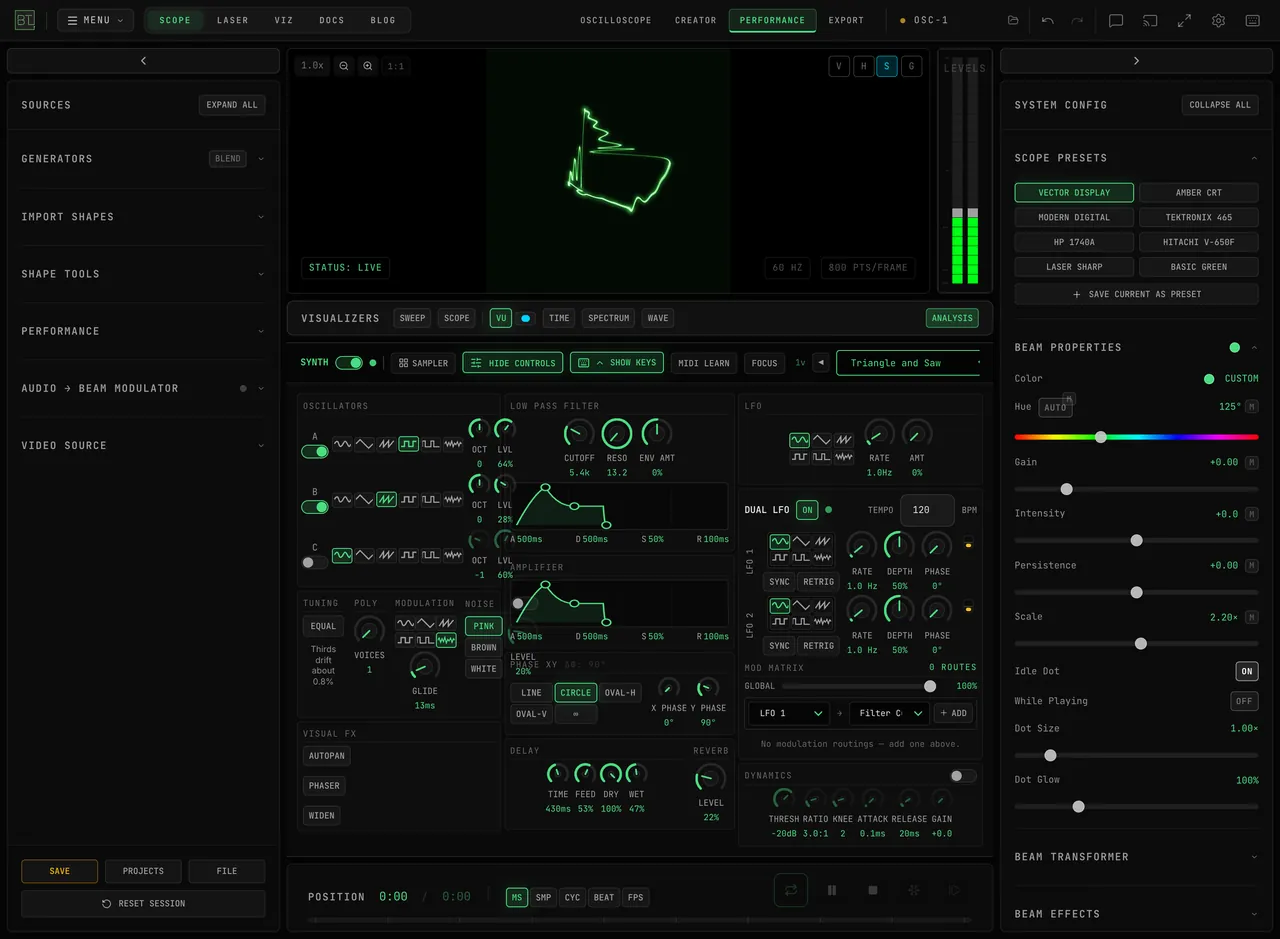

The built-in synth in OSC-1. Low Pass Filter, Delay, Reverb and the Visual FX bank all change the sound — which is why they all change the drawing.
What does a low-pass filter look like on an oscilloscope?
This is the one to try first, because the effect is unmistakable.
Hold a note with a bright, edgy patch and the figure comes out serrated: hard corners, fine ripples, a visible jitter along the outline. Close the filter and those details don't move or fade — they melt.

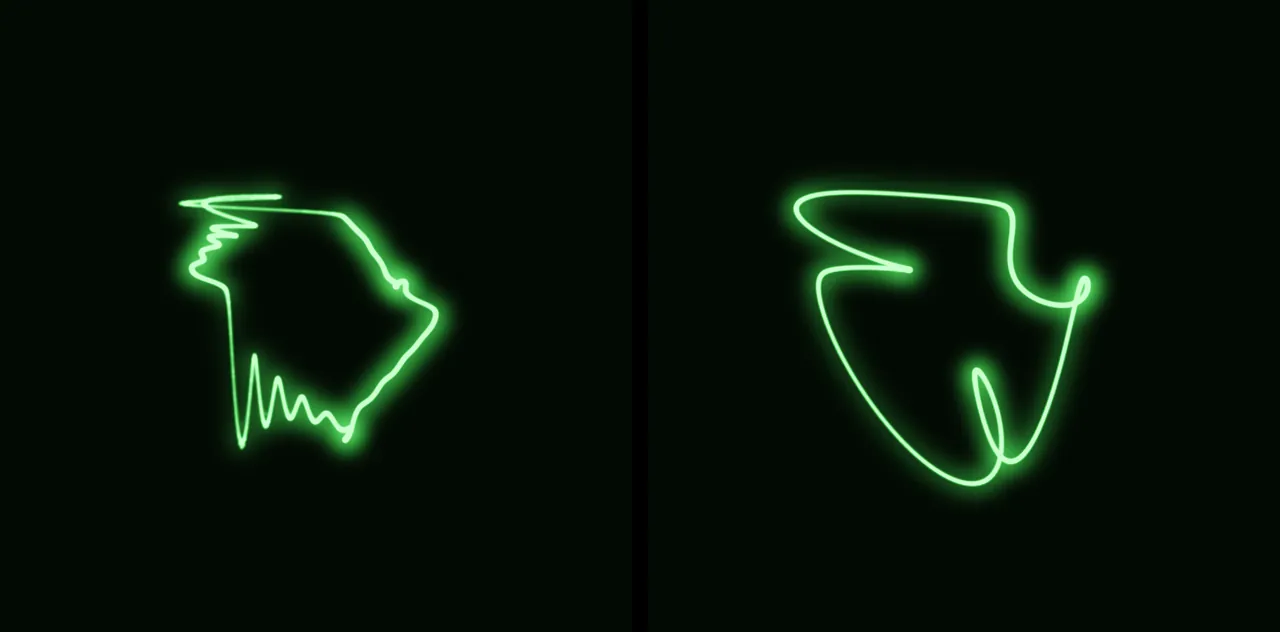

Same note, same patch, one control moved. Left: cutoff at 6.0 kHz — serrations, corners, fine detail. Right: cutoff at 1.2 kHz — the same figure, now drawn in smooth curves.
Notice what is preserved. The overall gesture of the shape survives, because the big slow moves are low frequencies and the filter leaves those alone. What disappears is precisely the part of the drawing that required speed.
This has a practical consequence worth remembering: if your figure looks mushy, reach for the filter before you blame the display. A closed filter and a low-resolution display look surprisingly similar on screen, and only one of them is under your control.
What do reverb, delay and stereo effects look like?
The rest of the effects rack is just as legible once you know what to look for.
- Reverb is the surprising one. It does not smear the figure the way it smears a snare drum. The outline holds its position and gains a soft halo around it, because the added energy is arriving at roughly the same rate the figure is being drawn at. Turn it up and the shape gets a glow, not a blur.
- Delay produces the obvious thing — a second, offset copy of the outline, strongest where the two passes don't line up.
- Widen pushes the figure outward from the centre. Stereo width and picture size are the same measurement here: the wider the stereo field, the further apart the two channels drive the point.
- Autopan takes the whole figure for an orbit around the screen. It is a panning effect and a motion effect at the same time.
That last pair is why the bank is labelled Visual FX in OSC-1 rather than "stereo tools". These are ordinary audio processors; on a scope their visual result is the reason you reach for them.
What does a phaser look like on an oscilloscope?
A phaser cancels different frequencies at different moments, and it keeps moving. On a scope that reads as a shape that is recognisably the original, differently wrong — and the wrongness drifts.

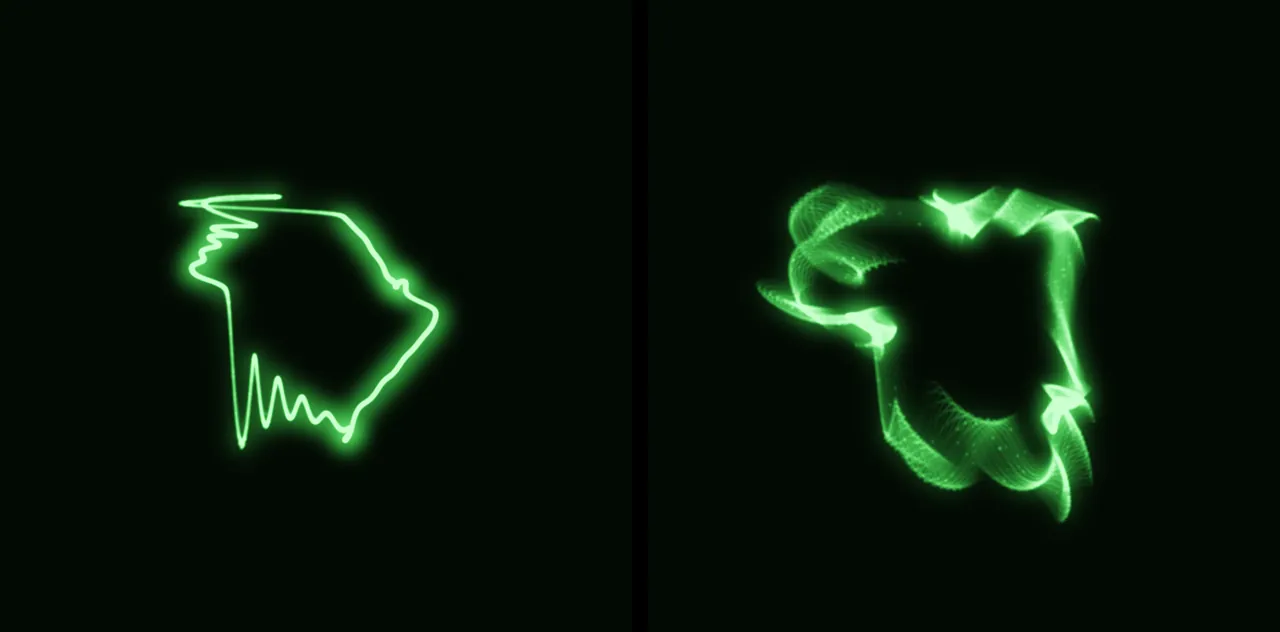

Left: the figure with no effects. Right: the same note with the phaser engaged — the outline is still there, wrapped in feathered sheets that move continuously.
A pair of frames can show you the feathering, but not the drift. Here is the same held note with the phaser switched on part-way through:
One note, held throughout. The figure sits still until the phaser comes on; after that the sheets around it drift as the effect sweeps.
The cheapest way to make a static patch look alive
A phaser gives a held note motion without you writing another part. Reach for it before you reach for more notes.
Which effects change the picture without changing the sound?
Everything above changes the audio, and therefore changes the drawing. OSC-1 also has fifteen beam effects that work the other way around: they transform the displayed geometry after the signal has been made, so they change what you see and leave your audio untouched.
The clearest one for this article is Crush, which snaps the picture's coordinates to a grid, turning smooth curves into stepped shapes.

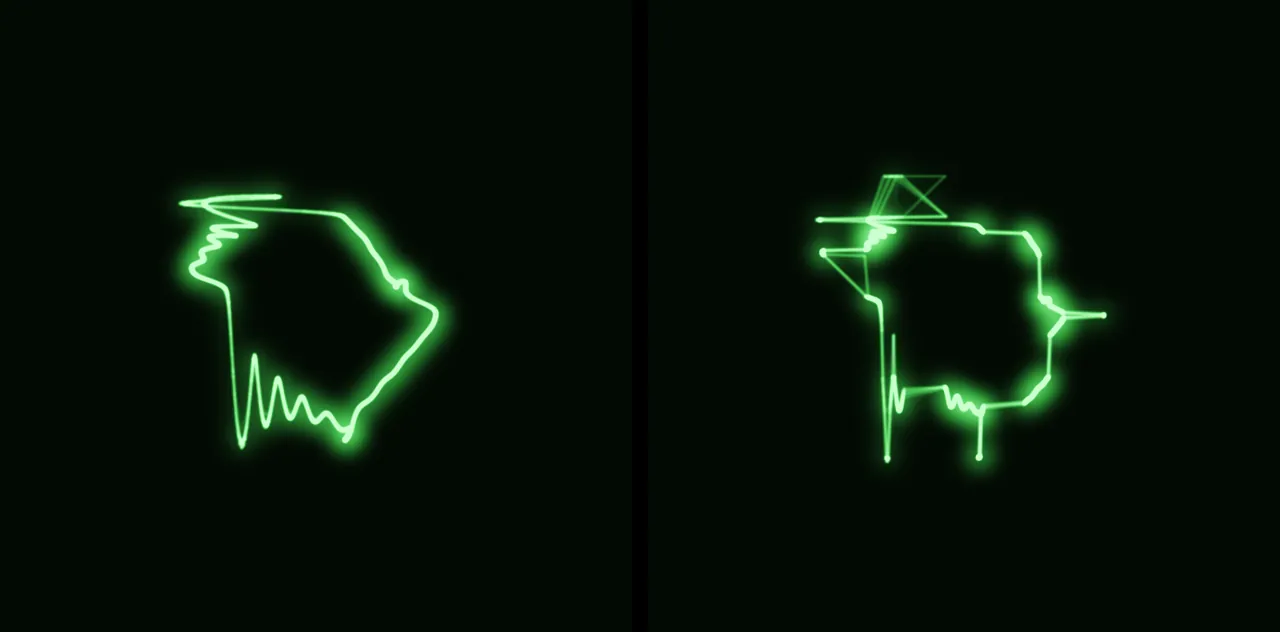

Left: the unprocessed figure. Right: Crush gives the same figure a stepped outline.
Knowing which family you're in matters, because they behave differently:
| Synth effects (Low Pass Filter, Delay, Reverb, Visual FX) | Beam effects (Rotate, Crush, Kaleid, and twelve more) | |
|---|---|---|
| Changes what you hear | Yes | No |
| Changes what you see | Yes | Yes |
| Included in EXPORT TRACK→WAV | No — this re-exports the current audio track, not the live synth performance | No |
| Included in EXPORT ILDA FRAME | Yes, when the synth is the displayed source — the current shape is captured, not the audio | Yes — current beam effects are applied to the exported frame |
| Applies to imported audio, shapes and 3D models | No — they process the built-in synth | Yes, whatever the source |
| Can be stacked | Yes | Yes |
An ILDA frame is a snapshot of the shape, not a recording of the performance. EXPORT TRACK→WAV saves the current audio track; it does not record notes you play live.
Neither family is the "real" one. Use the synth rack when you want the sound and the image to change together; use beam effects when the audio is already finished and only the visuals need work. Every beam effect is documented in Beam Effects, and the synth rack in Synth.
Does changing the picture change the sound?
Here's the payoff. If bending the sound bends the picture, then bending the picture bends the sound — provided you bend the signal rather than the display.
Reshaping a figure means taking each incoming value and mapping it to a different outgoing value. That is not like distortion. That is the textbook definition of distortion: a non-linear map from input level to output level. Rotate a 3D model, morph one shape into another, warp a figure into a spiral, and the audio changes in the same breath — usually into something with more harmonics and more bite.
This is why oscilloscope artists talk about drawing and sound design as one job. There is only one signal, and every decision you make about it is both.
How do I try this in OSC-1 right now?
- Open OSC-1 and switch to Performance mode
- Under Synth, press Initialize if it is shown, make sure the synth is enabled, then choose Show Controls
- Pick a bright patch and hold a note — the figure appears on the display
- Sweep Cutoff in the Low Pass Filter and watch the corners come and go
- Switch on Phaser in the Visual FX bank, then try Crush in Beam Effects and compare what each one did
Nothing to install, and no account required.
What should I learn next?
If the underlying idea — that a picture and a waveform can be the same object — is new to you, the oscilloscope music guide starts from the beginning.
If you would rather feed the scope something with structure already in it, converting a 3D model to oscilloscope art covers importing a model and tracing it, and hidden line removal explains why the path a beam takes through that model changes its sound as well as its look.
