An oscilloscope trace goes soft when the path the beam draws needs more frequency range than the recording or the playback chain preserves. Keep a high-rate lossless original, slow the drawing down when you generate it, and check intensity and persistence before blaming the file. BeamTracer's OSC-1 oscilloscope reports the loaded file's rate under SETTINGS → AUDIO.

Hi, I'm Trina with BeamTracer.com. Let's talk about soft corners, smeared lettering, and what actually helps when you're drawing pictures with sound.

Sample rate matters, especially for detailed artwork. But it isn't the only thing to check. The source recording, drawing speed, audio output, and scope settings all affect the trace. Turning up the sample rate won't repair every one of those problems.

What actually makes an oscilloscope image blurry?

• An XY oscilloscope follows two signals: left channel for X, right channel for Y.
• Fast, detailed paths can need more frequency range than the recording or playback equipment can preserve.
• A higher sample rate gives you more room to record that detail. Keep your high-rate original when you have one.
• When generating a drawing, slowing its traversal can reduce the frequency range it needs. Slowing an already damaged recording cannot restore lost detail.
• Check intensity, persistence, and the playback chain too. A thick or lingering trace can look blurry even when the source is good.

CLICK TO ENLARGE

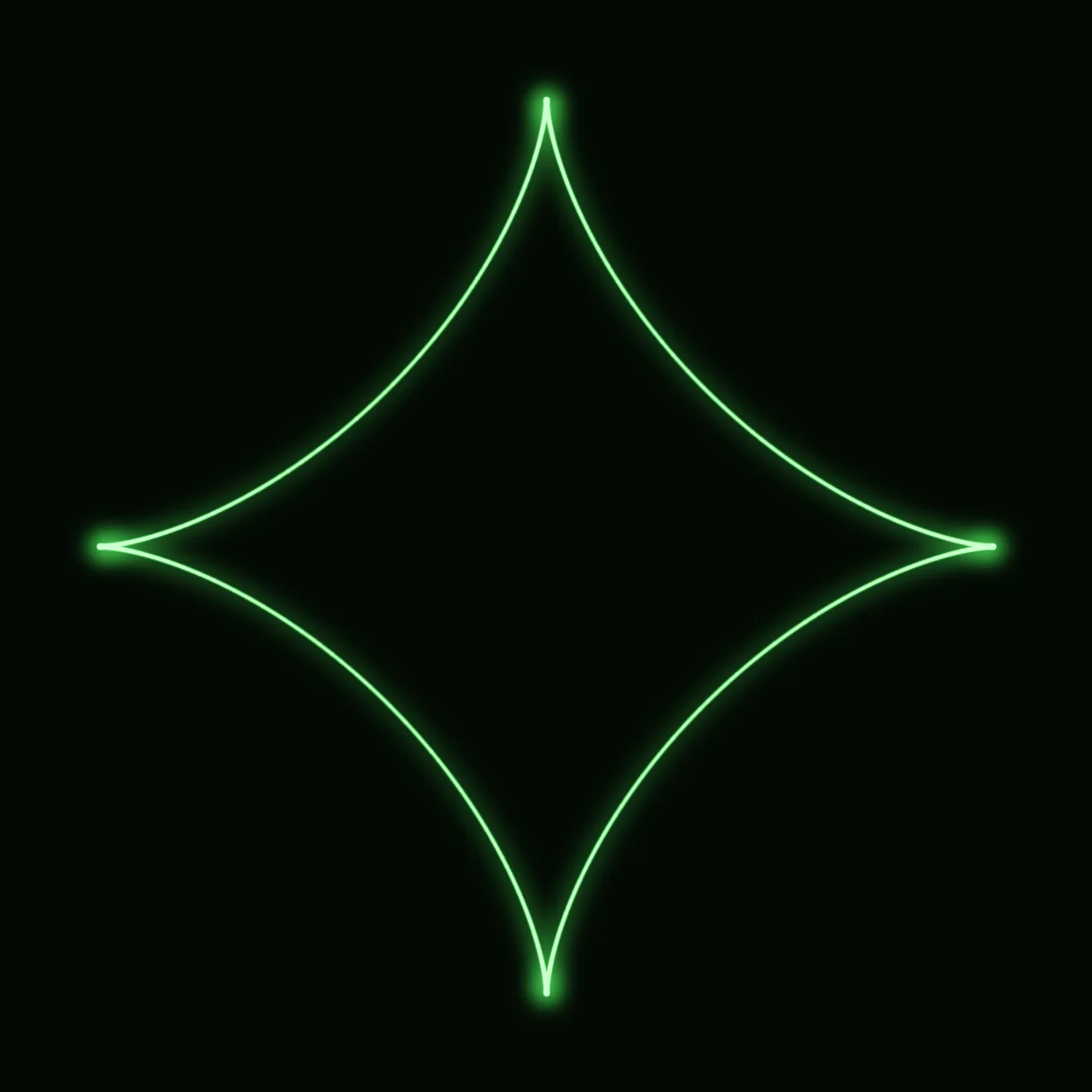

The Astroid combines four pointed cusps with smooth curves between them.

Why does the beam's path decide how much bandwidth you need?

Think about tracing a square. Racing along an edge and turning abruptly at the corner is a more demanding signal than easing into the turn. The way the point moves matters as much as the outline it leaves behind.

A corner is not automatically a square wave. An Astroid is a good counterexample: its X and Y signals can each be made from just a first and third harmonic, yet it has four sharp cusps. The point slows to a stop at each cusp. You cannot tell how much frequency range a shape needs just by counting its corners.

For a given path and motion, drawing faster shifts its frequencies upward. The recording and playback equipment must have enough bandwidth to preserve them. If filtering removes useful detail, the trace can soften or change shape. If frequencies above the sampling limit slip through without proper filtering, they can turn into false lower frequencies: aliasing.

Does a higher sample rate sharpen the trace?

It gives you room for the detail rather than guaranteeing it. Half the sample rate is the Nyquist frequency, a theoretical boundary. Reliable reproduction needs room below it for practical filtering; it isn't a promise that every frequency right up to that number will come through unchanged. Tektronix explains the relationship between bandwidth, sample rate, and fidelity.

For stereo XY audio, each sample instant supplies an X/Y pair. If a drawing really completes 50 identical traversals per second, the arithmetic looks like this:

That is an example of a repeating path, not a count of visible corners or a measurement of your screen's frame rate. More samples give you headroom; the result still depends on the path, its timing, and the playback chain.

Does slowing the drawing speed help?

When you're generating a figure, yes — try slowing it down while watching the same shape. The signal has more time to describe each pass, which can help preserve fine detail at the chosen sample rate.

In OSC-1, look for FREQUENCY in the oscillator and fractal generators, or SPEED in Lissajous, Spirograph and SHAPE MORPH. These controls affect motion, but their numbers are not interchangeable. An oscillator frequency is not necessarily the number of complete pictures drawn each second, and a SPEED setting should not be read as a redraw rate in Hz.

There is a trade-off: slower traces can flicker or appear to build up rather than sit still. How noticeable that is depends on the figure and the display's persistence. Sweep the control and judge the whole picture instead of chasing one supposedly perfect rate.

Do you actually need 192 kHz?

For detailed work, I would keep the highest-rate original available and generate at a high rate when the export offers it. Lettering and dense wire-frames are useful places to look for lost detail. But neither “48 kHz is unreadable” nor “192 kHz is always sharp” is a reliable rule.

A simple, slowly drawn circle may already fit comfortably within the available bandwidth. A dense drawing at a much faster rate may still struggle at 192 kHz. Compare the same artwork at the same speed and display settings before deciding what changed.

Storage is the straightforward trade-off: an uncompressed 192 kHz stereo WAV is four times the audio data of a 48 kHz version with the same duration and bit depth. Keep the high-rate master; it gives you more options later.

CLICK TO ENLARGE

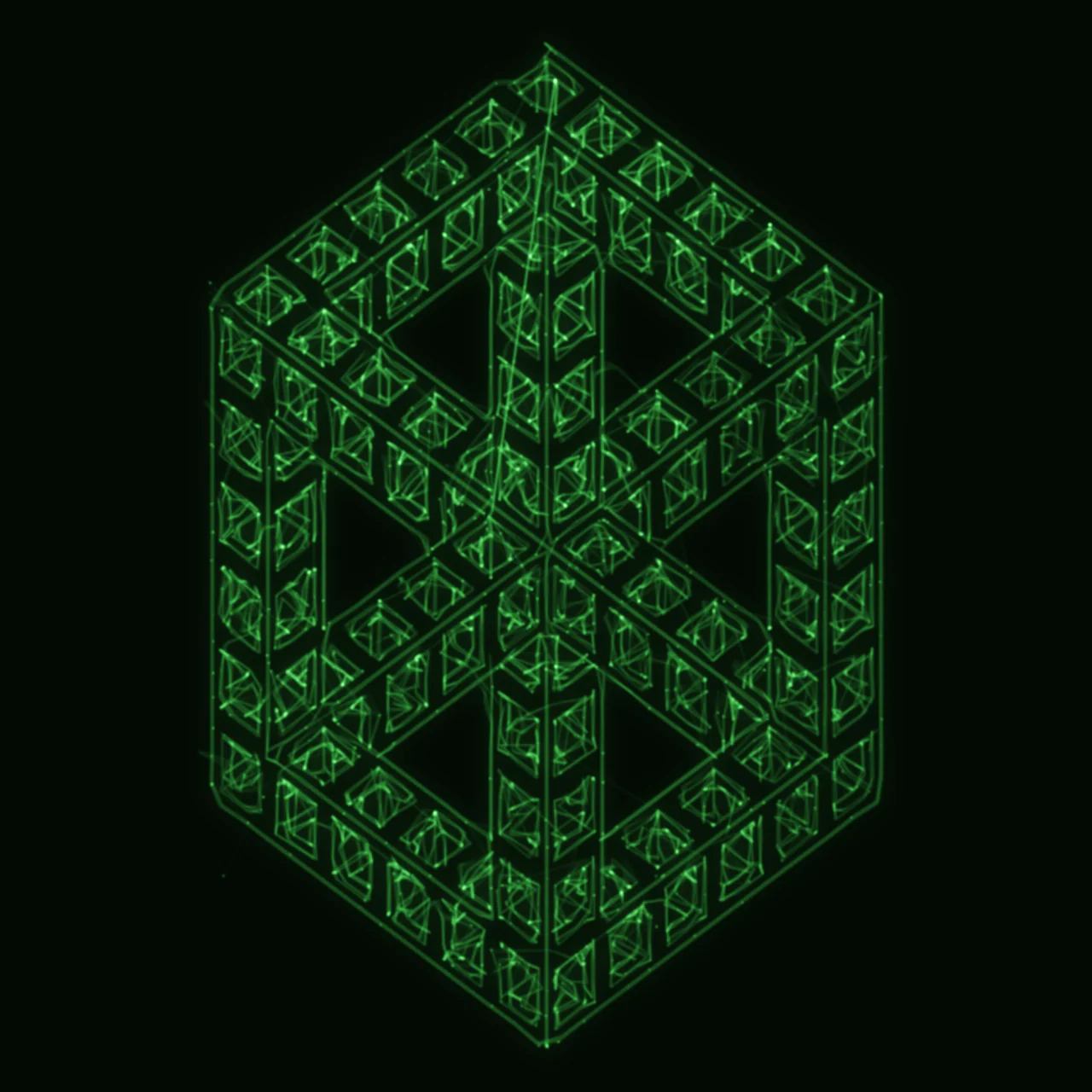

Look closely at the small shapes and long edges in the Impossible Cube. Dense artwork gives you plenty of fine detail to inspect.

Watching a drawing being traced helps explain the motion behind the image:

Six seconds of the honeycomb drawing being traced. Watch the changing brightness as the point travels through its arches.

How do you check and change the sample rate in OSC-1?

OSC-1 tells you the rate of the file you actually loaded, rather than the rate you assumed. The CURRENT SOURCE card names the channels, format and rate of the loaded source, the generator controls change the drawing speed, and the export panel shows the rate it is about to write.

Details of every export path are in Export.

What should you check first when a trace looks soft?

• Keep the original. Prefer lossless, high-rate material over a compressed copy or an upsampled substitute.
• Change one thing at a time. Compare the same path, speed, and display settings when checking sample-rate differences.
• Adjust generator speed by eye. Look for detail without distracting flicker.
• Check the display too. Too much Intensity or Persistence can obscure fine detail. On physical equipment, bandwidth and the audio output also matter.
• Keep your high-rate master. A smaller delivery copy should not replace it.

What should you read next?

If you are new to drawing pictures with sound, the oscilloscope music guide covers why the beam behaves the way it does and what makes an image sit still. If your source is a 3D model, converting a 3D model to oscilloscope or laser art walks through the whole path, including the hidden-line pass that removes edges you were paying for and could not see.

And if your real problem is that you want two separate objects on screen rather than one sharper one, that is a different constraint with its own set of answers: how to draw two things at once on an oscilloscope.

Go make something sharp. beamtracer.com — see you in the next one.
